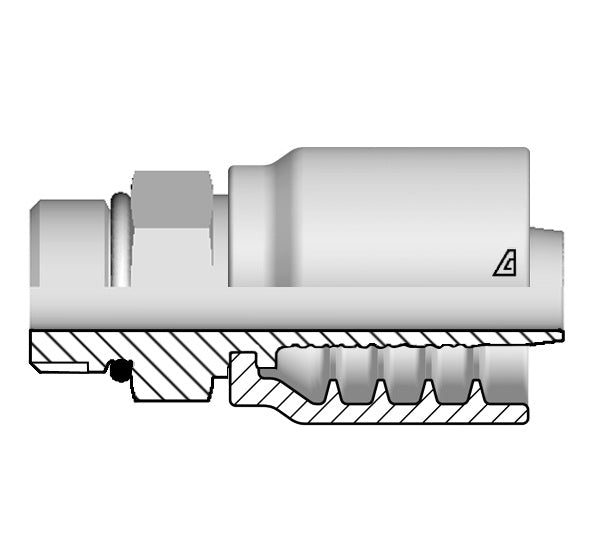

B-0405-MORB Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -04 Hose ID x -05 SAE Male O-Ring Boss | Steel

B-0405-MORB Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -04 Hose ID x -05 SAE Male O-Ring Boss | Steel

Save $2.79 Save $2.79
$9.76
$9.76 - $9.76
$9.76
$6.97
$6.97 - $6.97
$6.97

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Hose Barb x SAE Male O-Ring Boss
Specifications for Variant SKU: B-0405-MORB Kuriyama
Brand: Alfagomma
Series: B Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Hose Barb, 5/16in Male O-Ring Boss
Material(s): Steel
Compatible with the following Series: E3K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   TF2TL TWIN Series  |   AT3KMT Series  |   AT3KST Series  |   TF2ST Series  |   TR1HT Series  |   TR2HT Series  |   AT10KJ Series  |   TF2LT Series  |   KK4BK Series  |   KK4BU Series  |   TAJ5BK Series  |   TAJ5BU Series
About B-Series Fittings:
  • A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off
Factor		 CH1 Weight
DashSize (in.) (mm) DashSize Size(in) - TPI (mm) (mm) lbs/each
B-0404-MORB 04 1/4" 6.4mm 04 7/16-20 20.3mm 14mm 0.11 lbs
B-0405-MORB 04 1/4" 6.4mm 05 1/2-20 21.3mm 16mm 0.12 lbs
B-0406-MORB 04 1/4" 6.4mm 06 9/16-18 22.3mm 17mm 0.12 lbs
B-0606-MORB 06 3/8" 9.5mm 06 9/16-18 23.3mm 19mm 0.16 lbs
B-0608-MORB 06 3/8" 9.5mm 08 3/4-16 24.3mm 22mm 0.19 lbs
B-0610-MORB 06 3/8" 9.5mm 10 7/8-14 26.8mm 27mm 0.24 lbs
B-0808-MORB 08 1/2" 12.7mm 08 3/4-16 25.1mm 22mm 0.23 lbs
B-0810-MORB 08 1/2" 12.7mm 10 7/8-14 27.6mm 27mm 0.28 lbs
B-0812-MORB 08 1/2" 12.7mm 12 1 1/16-12 32.1mm 32mm 0.37 lbs
B-1010-MORB 10 5/8" 15.9mm 10 7/8-14 29.8mm 27mm 0.39 lbs
B-1012-MORB 10 5/8" 15.9mm 12 1-1/16-12 32.1mm 32mm 0.41 lbs
B-1210-MORB 12 3/4" 19.0mm 10 7/8-14 28.1mm 27mm 0.39 lbs
B-1212-MORB 12 3/4" 19.0mm 12 1-1/16-12 32.6mm 32mm 0.48 lbs
B-1216-MORB 12 3/4" 19.0mm 16 1-5/16-12 34.6mm 38mm 0.61 lbs
B-1616-MORB 16 1" 25.4mm 16 1-5/16-12 35.4mm 38mm 0.73 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
