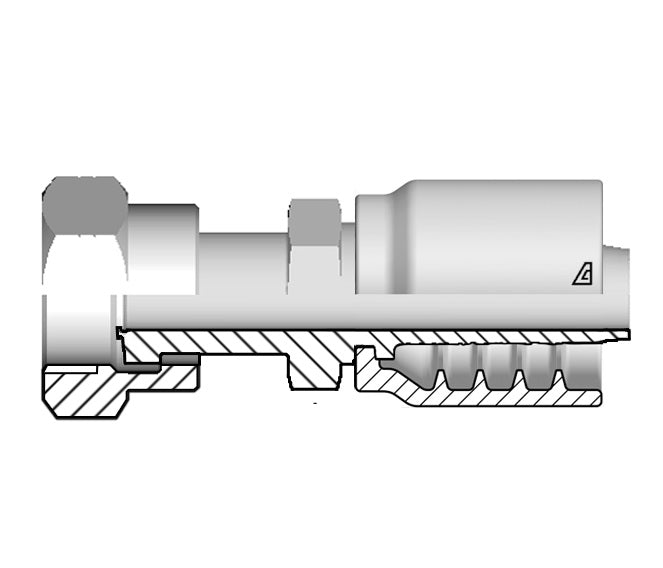

B-0406-FOFS Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | with Stem Hexagon | -04 Hose ID x -06 Female O-Ring Face Seal | Steel | Pack of 5

Save $3.74

$13.08

$13.08 - $13.08

$13.08

$9.34

$9.34 - $9.34

$9.34

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | with Stem Hexagon | Hose Barb x Female O-Ring Face Seal

Specifications for Variant SKU: B-0406-FOFS Kuriyama \| 5 \|
Brand:	Alfagomma
Series:	B Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Hose Barb, 3/8in Female O-Ring Face Seal
Material(s):	Steel
Compatible with the following Series:	E3K Series \| TR1MT Series \| TR2MT Series \| TF2MT Series \| TF2TL TWIN Series \| AT3KMT Series \| AT3KST Series \| TF2ST Series \| TR1HT Series \| TR2HT Series \| AT10KJ Series \| TF2LT Series \| KK4BK Series \| KK4BU Series \| TAJ5BK Series \| TAJ5BU Series

About B-Series Fittings:
A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.
Material:
Steel


Part Number	Hose ID Size			F Thread		C Cut-Off Factor	CH1	CH2	Weight
Part Number	DashSize	(in.)	(mm)	DashSize	Size(in) - TPI	(mm)	(mm)	(mm)	lbs/each
B-0404-FOFS	04	1/4"	6.4mm	04	9/16-18	27.3mm	14mm	17mm	0.14 lbs
B-0406-FOFS	04	1/4"	6.4mm	06	11/16-16	30.3mm	17mm	22mm	0.20 lbs
B-0408-FOFS	04	1/4"	6.4mm	08	13/16-16	35.3mm	22mm	24mm	0.27 lbs
B-0506-FOFS	05	5/16"	7.9mm	06	11/16-16	30.3mm	17mm	22mm	0.21 lbs
B-0606-FOFS	06	3/8"	9.5mm	06	11/16-16	30.3mm	17mm	22mm	0.22 lbs
B-0608-FOFS	06	3/8"	9.5mm	08	13/16-16	35.3mm	22mm	24mm	0.28 lbs
B-0806-FOFS	08	1/2"	12.7mm	06	11/16-16	32.1mm	19mm	22mm	0.27 lbs
B-0808-FOFS	08	1/2"	12.7mm	08	13/16-16	36.1mm	22mm	24mm	0.31 lbs
B-0810-FOFS	08	1/2"	12.7mm	10	1-14	39.6mm	24mm	30mm	0.40 lbs
B-0812-FOFS	08	1/2"	12.7mm	12	1-3/16-12	42.1mm	30mm	36mm	0.62 lbs
B-1010-FOFS	10	5/8"	15.9mm	10	1-14	39.6mm	24mm	30mm	0.44 lbs
B-1012-FOFS	10	5/8"	15.9mm	12	1-3/16-12	42.1mm	30mm	36mm	0.64 lbs
B-1210-FOFS	12	3/4"	19.0mm	10	1-14	40.1mm	27mm	30mm	0.53 lbs
B-1212-FOFS	12	3/4"	19.0mm	12	1-3/16-12	42.6mm	30mm	36mm	0.68 lbs
B-1216-FOFS	12	3/4"	19.0mm	16	1-7/16-12	48.6mm	36mm	41mm	0.95 lbs
B-1612-MOFS	16	1"	25.4mm	12	1-3/16-12	45.4mm	32mm	36mm	0.89 lbs
B-1616-FOFS	16	1"	25.4mm	16	1-7/16-12	49.4mm	36mm	41mm	1.02 lbs
B-1620-FOFS	16	1"	25.4mm	20	1-11/16-12	50.4mm	41mm	50mm	1.38 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
