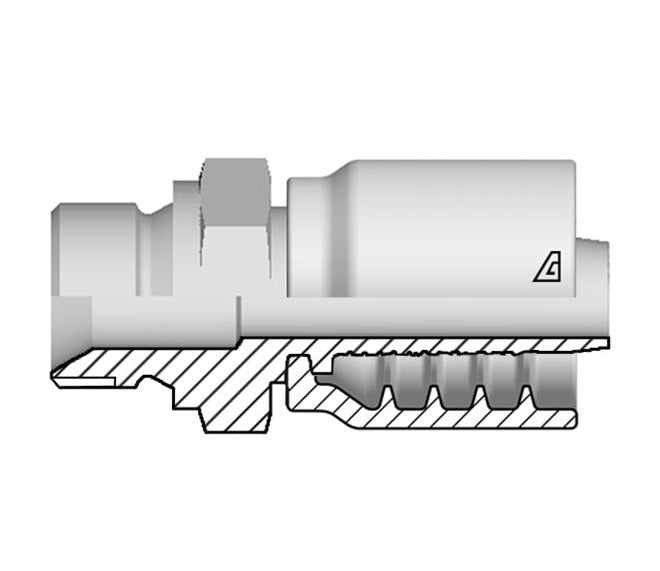

B-0506-MBPP Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -05 Hose ID x -06 Male BSPP 60° Flare | Steel

B-0506-MBPP Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -05 Hose ID x -06 Male BSPP 60° Flare | Steel

Save $3.14 Save $3.14
$11.00
$11.00 - $11.00
$11.00
$7.86
$7.86 - $7.86
$7.86

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Hose Barb x Male BSPP 60° Flare
Specifications for Variant SKU: B-0506-MBPP Kuriyama
Brand: Alfagomma
Series: B Series
Shape (Orientation): Straight
Ends Configuration: 5/16in Hose Barb, 3/8in Male BSPP
Material(s): Steel
Compatible with the following Series: E3K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   TF2TL TWIN Series  |   AT3KMT Series  |   AT3KST Series  |   TF2ST Series  |   TR1HT Series  |   TR2HT Series  |   AT10KJ Series  |   TF2LT Series  |   KK4BK Series  |   KK4BU Series  |   TAJ5BK Series  |   TAJ5BU Series
About B-Series Fittings:
  • A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off Factor		 CH1 Weight
DashSize (in.) (mm) DashSize Size (in) - TPI (mm) (mm) lbs/each
B-0402-MBPP 04 1/4" 6.4mm 02 1/8-28 21.7mm 14mm 0.10 lbs
B-0404-MBPP 04 1/4" 6.4mm 04 1/4-19 26.3mm 19mm 0.14 lbs
B-0406-MBPP 04 1/4" 6.4mm 06 3/8-19 27.8mm 22mm 0.17 lbs
B-0506-MBPP 05 5/16" 7.9mm 06 3/8-19 27.8mm 22mm 0.18 lbs
B-0606-MBPP 06 3/8" 9.5mm 06 3/8-19 27.8mm 22mm 0.19 lbs
B-0608-MBPP 06 3/8" 9.5mm 08 1/2-14 31.3mm 27mm 0.25 lbs
B-0806-MBPP 08 1/2" 12.7mm 06 3/8-19 28.6mm 22mm 0.23 lbs
B-0808-MBPP 08 1/2" 12.7mm 08 1/2-14 32.1mm 27mm 0.29 lbs
B-0810-MBPP 08 1/2" 12.7mm 10 5/8-14 36.1mm 30mm 0.32 lbs
B-0812-MBPP 08 1/2" 12.7mm 12 3/4-14 34.1mm 32mm 0.39 lbs
B-1010-MBPP 10 5/8" 15.9mm 10 5/8-14 36.1mm 30mm 0.36 lbs
B-1012-MBPP 10 5/8" 15.9mm 12 3/4-14 34.1mm 32mm 0.42 lbs
B-1212-MBPP 12 3/4" 19.0mm 12 3/4-14 34.6mm 32mm 0.50 lbs
B-1216-MBPP 12 3/4" 19.0mm 16 1-11 39.6mm 41mm 0.69 lbs
B-1616-MBPP 16 1" 25.4mm 16 1-11 40.4mm 41mm 0.83 lbs
B-1620-MBPP 16 1" 25.4mm 20 1-1/4-11 45.4mm 50mm 1.12 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
