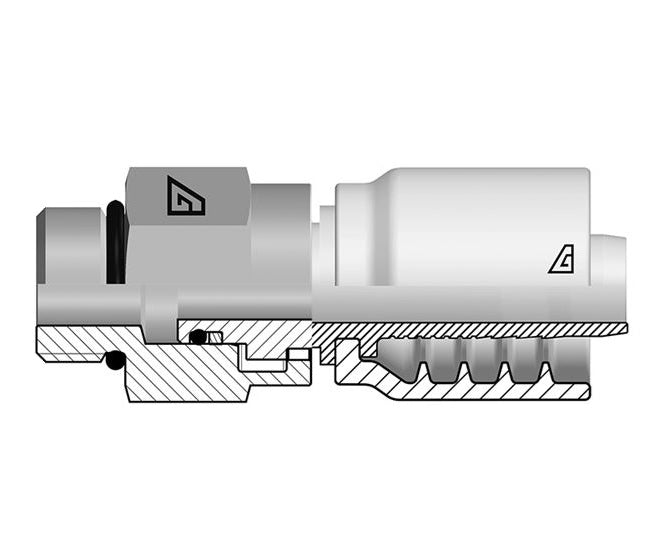

B-0608-MOBS Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -06 Hose ID x -08 SAE Male O-Ring Boss Swivel | Steel

B-0608-MOBS Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -06 Hose ID x -08 SAE Male O-Ring Boss Swivel | Steel

Save $6.10 Save $6.10
$21.34
$21.34 - $21.34
$21.34
$15.24
$15.24 - $15.24
$15.24

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Hose Barb x SAE Male O-Ring Boss Swivel
Specifications for Variant SKU: B-0608-MOBS Kuriyama
Brand: Alfagomma
Series: B Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Hose Barb, 1/2in Male O-Ring Boss
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: E3K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   TF2TL TWIN Series  |   AT3KMT Series  |   AT3KST Series  |   TF2ST Series  |   TR1HT Series  |   TR2HT Series  |   AT10KJ Series  |   TF2LT Series  |   KK4BK Series  |   KK4BU Series  |   TAJ5BK Series  |   TAJ5BU Series
About B-Series Fittings:
  • A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off
Factor		 CH1 Weight
DashSize (in.) (mm) DashSize Size(in) - TPI (mm) (mm) lbs/each
B-0404-MOBS 04 1/4" 6.4mm 04 7/16-20 33.1mm 17mm 0.19 lbs
B-0405-MOBS 04 1/4" 6.4mm 05 1/2-20 37.6mm 17mm 0.20 lbs
B-0406-MOBS 04 1/4" 6.4mm 06 9/16-18 42.5mm 22mm 0.20 lbs
B-0606-MOBS 06 3/8" 9.5mm 06 9/16-18 40.5mm 22mm 0.22 lbs
B-0608-MOBS 06 3/8" 9.5mm 08 3/4-16 43.5mm 25mm 0.24 lbs
B-0808-MOBS 08 1/2" 12.7mm 08 3/4-16 42.3mm 25mm 0.38 lbs
B-0810-MOBS 08 1/2" 12.7mm 10 7/8-14 43.8mm 25mm 0.40 lbs
B-1212-MOBS 12 3/4" 19.0mm 12 1-1/16-12 49.6mm 32mm 0.50 lbs
B-1616-MOBS 16 1" 25.4mm 16 1-5/16-12 52.0mm 38mm 1.00 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
