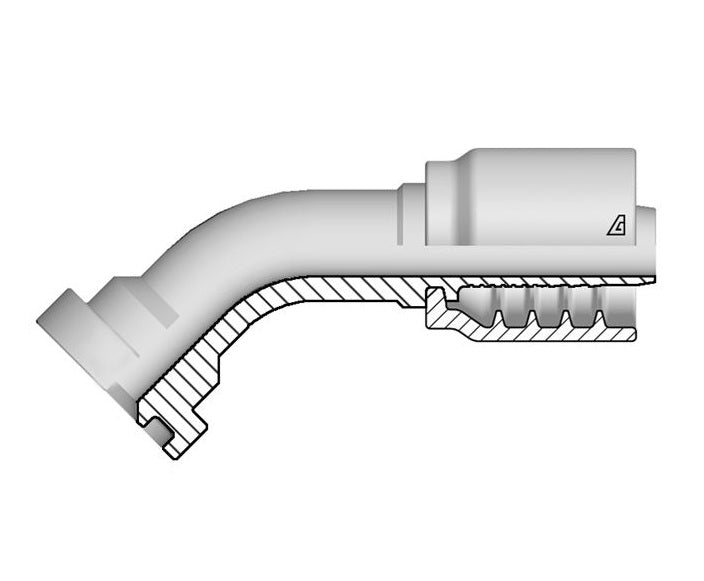

B-0808-C624 Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | SAE J518 | -08 Hose ID x -08 Code 62 Flange | Steel

Save $12.88

$45.09

$45.09 - $45.09

$45.09

$32.21

$32.21 - $32.21

$32.21

Specifications for Variant SKU: B-0808-C624 Kuriyama
Brand:	Alfagomma
Series:	B Series
Shape (Orientation):	45 Degree
Ends Configuration:	3/4in Code 62 Flange, 3/4in Hose Barb
Material(s):	Steel
Applicable Specs & Approvals:	SAE J518
Compatible with the following Series:	E3K Series \| TR1MT Series \| TR2MT Series \| TF2MT Series \| TF2TL TWIN Series \| AT3KMT Series \| AT3KST Series \| TF2ST Series \| TR1HT Series \| TR2HT Series \| AT10KJ Series \| TF2LT Series \| KK4BK Series \| KK4BU Series \| TAJ5BK Series \| TAJ5BU Series

About B-Series Fittings:
A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust. 6000 PSI
Material:
Steel


Part Number	Hose ID Size			Flange		Q	C Cut-Off Factor	D Drop	Weight
Part Number	DashSize	(in.)	(mm)	DashSize	(in)	(mm)	(mm)	(mm)	lbs/each
B-0808-C624	08	1/2"	12.7mm	08	1/2"	31.8mm	46.6mm	23.0mm	0.39 lbs
B-0812-C624	08	1/2"	12.7mm	12	3/4"	41.3mm	67.2mm	30.5mm	0.67 lbs
B-1212-C624	12	3/4"	19.0mm	12	3/4"	41.3mm	71.4mm	31.0mm	0.85 lbs
B-1216-C624	12	3/4"	19.0mm	16	1"	47.6mm	65.2mm	33.5mm	1.00 lbs
B-1616-C624	16	1"	25.4mm	16	1"	47.6mm	81.9mm	36.0mm	1.23 lbs
B-1620-C624	16	1"	25.4mm	20	1-1/4"	54.0mm	78.4mm	39.0mm	1.47 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
