B-0808-FPMS Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -08 Hose ID x -08 Female NPSM | Steel | Pack of 5

Save $37.40

$97.10

$97.10 - $97.10

$97.10

$59.70

$59.70 - $59.70

$59.70

Kuriyama of America Inc.

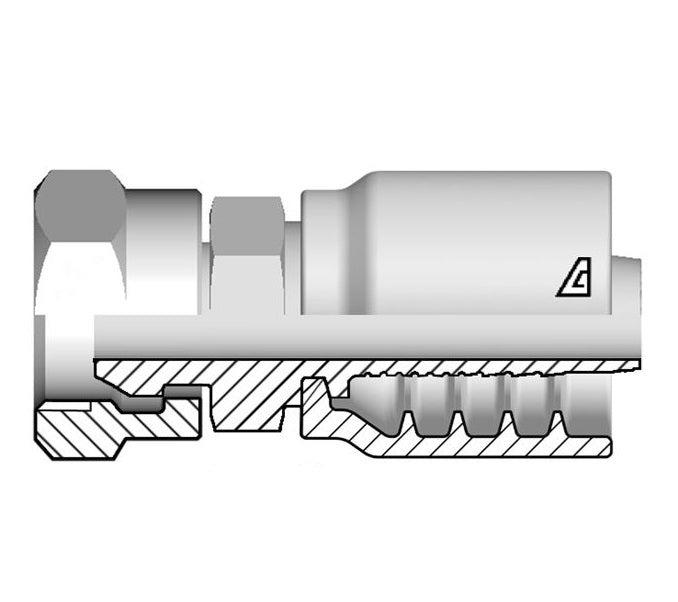

Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Hose Barb x Female NPSM

Specifications for Variant SKU: B-0808-FPMS Kuriyama \| 5 \|
Brand:	Alfagomma
Series:	B Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Hose Barb, 1/2in Female NPSM
Material(s):	Steel
Compatible with the following Series:	E3K Series \| TR1MT Series \| TR2MT Series \| TF2MT Series \| TF2TL TWIN Series \| AT3KMT Series \| AT3KST Series \| TF2ST Series \| TR1HT Series \| TR2HT Series \| AT10KJ Series \| TF2LT Series \| KK4BK Series \| KK4BU Series \| TAJ5BK Series \| TAJ5BU Series

About B-Series Fittings:
A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.
Material:
Steel


Part Number	Hose ID Size			F Thread		C Cut-Off Factor	CH1	CH2	Weight
Part Number	DashSize	(in.)	(mm)	DashSize	Size(in) - TPI	(mm)	(mm)	(mm)	lbs/each
B-0404-FPMS	04	1/4"	6.4mm	04	1/4-18	24.3mm	17mm	19mm	0.17 lbs
B-0606-FPMS	06	3/8"	9.5mm	06	3/8-18	25.8mm	19mm	22mm	0.23 lbs
B-0808-FPMS	08	1/2"	12.7mm	08	1/2-14	27.6mm	22mm	27mm	0.31 lbs
B-1212-FPMS	12	3/4"	19.0mm	12	3/4-14	28.6mm	27mm	32mm	0.63 lbs
B-1616-FPMS	16	1"	25.4mm	16	1-11-1/2	35.4mm	36mm	38mm	0.88 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
