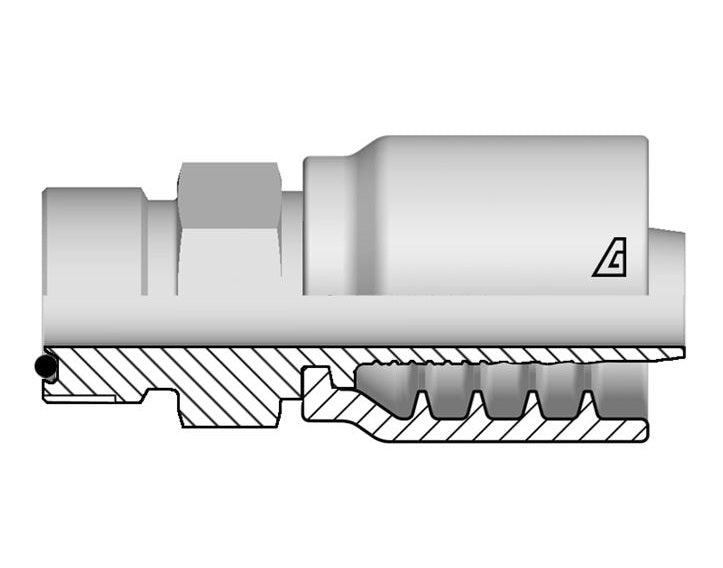

B-0808-MOFS Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -08 Hose ID x -08 Male O-Ring Face Seal | Steel

B-0808-MOFS Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -08 Hose ID x -08 Male O-Ring Face Seal | Steel

Save $4.20 Save $4.20
$14.69
$14.69 - $14.69
$14.69
$10.49
$10.49 - $10.49
$10.49

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Hose Barb x Male O-Ring Face Seal
Specifications for Variant SKU: B-0808-MOFS Kuriyama
Brand: Alfagomma
Series: B Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Hose Barb, 1/2in Male O-Ring Face Seal
Material(s): Steel
Compatible with the following Series: E3K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   TF2TL TWIN Series  |   AT3KMT Series  |   AT3KST Series  |   TF2ST Series  |   TR1HT Series  |   TR2HT Series  |   AT10KJ Series  |   TF2LT Series  |   KK4BK Series  |   KK4BU Series  |   TAJ5BK Series  |   TAJ5BU Series
About B-Series Fittings:
  • A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off
Factor		 CH1 Weight
DashSize (in.) (mm) DashSize Size(in) - TPI (mm) (mm) lbs/each
B-0404-MOFS 04 1/4" 6.4mm 04 9/16-18 22.3mm 17mm 0.13 lbs
B-0406-MOFS 04 1/4" 6.4mm 06 11/16-16 24.3mm 19mm 0.15 lbs
B-0606-MOFS 06 3/8" 9.5mm 06 11/16-16 24.3mm 19mm 0.17 lbs
B-0608-MOFS 06 3/8" 9.5mm 08 13/16-16 26.3mm 22mm 0.21 lbs
B-0610-MOFS 06 3/8" 9.5mm 10 1-14 29.8mm 27mm 0.28 lbs
B-0808-MOFS 08 3/4" 19.0mm 08 13/16-16 27.1mm 22mm 0.24 lbs
B-0810-MOFS 08 1/2" 12.7mm 10 1-14 30.6mm 27mm 0.32 lbs
B-0812-MOFS 08 1/2" 12.7mm 12 1-3/16-12 34.1mm 32mm 0.43 lbs
B-1010-MOFS 10 5/8" 15.9mm 10 1-14 30.6mm 27mm 0.35 lbs
B-1012-MOFS 10 5/8" 15.9mm 12 1-3/16-12 34.1mm 32mm 0.47 lbs
B-1210-MOFS 12 3/4" 19.0mm 10 1-14 34.6mm 32mm 0.51 lbs
B-1212-MOFS 12 3/4" 19.0mm 12 1-3/16-12 34.6mm 32mm 0.53 lbs
B-1216-MOFS 12 3/4" 19.0mm 16 1-7/16-12 38.1mm 41mm 0.74 lbs
B-1616-MOFS 16 1" 25.4mm 16 1-7/16-12 37.9mm 38mm 0.81 lbs
B-1620-MOFS 16 1" 25.4mm 20 1-11/16-12 39.9mm 46mm 1.00 lbs
