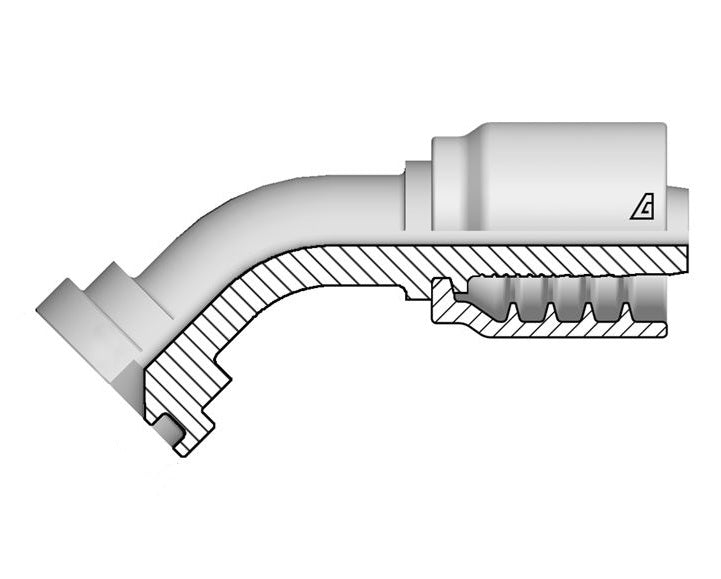

B-1012-C614 Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 45° Elbow | SAE J518 | -10 Hose ID x -12 Code 61 Flange | Steel

Save $15.15

$53.03

$53.03 - $53.03

$53.03

$37.88

$37.88 - $37.88

$37.88

Specifications for Variant SKU: B-1012-C614 Kuriyama
Brand:	Alfagomma
Series:	B Series
Shape (Orientation):	45 Degree
Ends Configuration:	5/8in Code 61 Flange, 3/4in Hose Barb
Material(s):	Steel
Applicable Specs & Approvals:	SAE J518
Compatible with the following Series:	E3K Series \| TR1MT Series \| TR2MT Series \| TF2MT Series \| TF2TL TWIN Series \| AT3KMT Series \| AT3KST Series \| TF2ST Series \| TR1HT Series \| TR2HT Series \| AT10KJ Series \| TF2LT Series \| KK4BK Series \| KK4BU Series \| TAJ5BK Series \| TAJ5BU Series

About B-Series Fittings:
A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust. 3000 PSI
Material:
Steel


Part Number	Hose ID Size			Flange		Q	C Cut-Off Factor	D Drop	Weight
Part Number	DashSize	(in.)	(mm)	DashSize	(in)	(mm)	(mm)	(mm)	lbs/each
B-0808-C614	08	1/2"	12.7mm	08	1/2"	30.2mm	43.7mm	22.0mm	0.35 lbs
B-0812-C614	08	1/2"	12.7mm	12	3/4"	38.1mm	50.4mm	26.0mm	0.48 lbs
B-1012-C614	10	5/8"	15.9mm	12	3/4"	38.1mm	55.1mm	26.0mm	0.53 lbs
B-1212-C614	12	3/4"	19.0mm	12	3/4"	38.1mm	63.8mm	32.0mm	0.73 lbs
B-1216-C614	12	3/4"	19.0mm	16	1"	44.5mm	68.0mm	29.0mm	0.84 lbs
B-1616-C614	16	1"	25.4mm	16	1"	44.5mm	72.8mm	33.5mm	1.08 lbs
B-1620-C614	16	1"	25.4mm	20	1-1/4"	50.8mm	72.3mm	36.0mm	1.16 lbs
