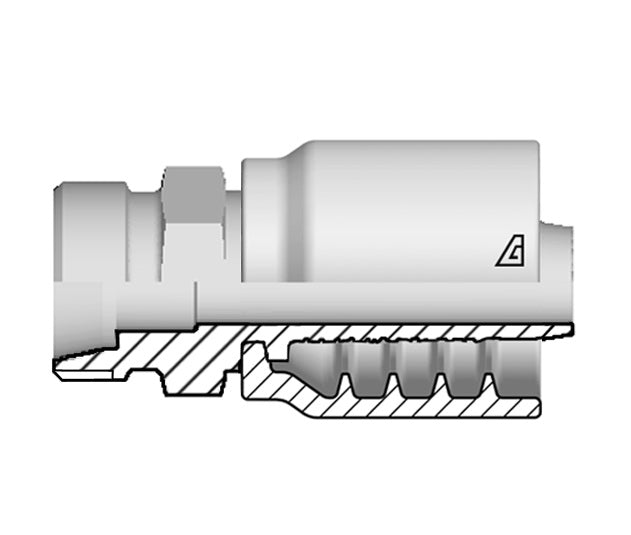

B-1026-MMSL Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3853 Light | -10 Hose ID x 26mm Male Metric 24° Seat | Steel

B-1026-MMSL Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3853 Light | -10 Hose ID x 26mm Male Metric 24° Seat | Steel

Save $5.99 Save $5.99
$20.96
$20.96 - $20.96
$20.96
$14.97
$14.97 - $14.97
$14.97

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3853 Light | Hose Barb x Male Metric 24° Seat
Specifications for Variant SKU: B-1026-MMSL Kuriyama
Brand: Alfagomma
Series: B Series
Shape (Orientation): Straight
Material(s): Steel
Applicable Specs & Approvals: DIN 3853
Compatible with the following Series: E3K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   TF2TL TWIN Series  |   AT3KMT Series  |   AT3KST Series  |   TF2ST Series  |   TR1HT Series  |   TR2HT Series  |   AT10KJ Series  |   TF2LT Series  |   KK4BK Series  |   KK4BU Series  |   TAJ5BK Series  |   TAJ5BU Series
About B-Series Fittings:
  • A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread Dia x Pitch Tube OD C
Cut-Off Factor		 CH1 Weight
DashSize (in.) (mm) (mm) (mm) (mm) lbs/each
B-0412-MMSL 04 1/4" 6.4mm 12x1.5 6mm 21.3mm 14mm 0.11 lbs
B-0414-MMSL 04 1/4" 6.4mm 14x1.5 8mm 21.3mm 14mm 0.11 lbs
B-0416-MMSL 04 1/4" 6.4mm 16x1.5 10mm 23.3mm 17mm 0.12 lbs
B-0516-MMSL 05 5/16" 7.9mm 16x1.5 10mm 23.3mm 17mm 0.14 lbs
B-0518-MMSL 05 5/16" 7.9mm 18x1.5 12mm 24.3mm 19mm 0.15 lbs
B-0616-MMSL 06 3/8" 9.5mm 16x1.5 10mm 23.3mm 17mm 0.15 lbs
B-0618-MMSL 06 3/8" 9.5mm 18x1.5 12mm 24.3mm 19mm 0.16 lbs
B-0622-MMSL 06 3/8" 9.5mm 22x1.5 15mm 25.3mm 22mm 0.19 lbs
B-0822-MMSL 08 1/2" 12.7mm 22x1.5 15mm 26.1mm 22mm 0.23 lbs
B-0826-MMSL 08 1/2" 12.7mm 26x1.5 18mm 27.1mm 27mm 0.28 lbs
B-1026-MMSL 10 5/8" 15.9mm 26x1.5 18mm 27.1mm 27mm 0.32 lbs
B-1230-MMSL 12 3/4" 19.0mm 30x2.0 22mm 31.6mm 32mm 0.45 lbs
B-1636-MMSL 16 1" 25.4mm 36x2.0 28mm 34.4mm 36mm 0.66 lbs
