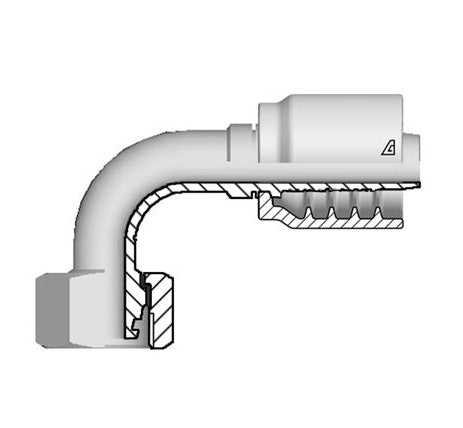

B-1030-FM9L Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | DIN 3865 Light | -10 Hose ID x 30mm Metric Female 24° Cone with O-Ring | Steel

B-1030-FM9L Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | DIN 3865 Light | -10 Hose ID x 30mm Metric Female 24° Cone with O-Ring | Steel

Save $13.27 Save $13.27
$46.45
$46.45 - $46.45
$46.45
$33.18
$33.18 - $33.18
$33.18

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | DIN 3865 Light | Hose Barb x Female Metric 24° Cone with O-Ring
Specifications for Variant SKU: B-1030-FM9L Kuriyama
Brand: Alfagomma
Series: B Series
Shape (Orientation): 90 Degree
Material(s): Steel
Applicable Specs & Approvals: DIN 3865
Compatible with the following Series: E3K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   TF2TL TWIN Series  |   AT3KMT Series  |   AT3KST Series  |   TF2ST Series  |   TR1HT Series  |   TR2HT Series  |   AT10KJ Series  |   TF2LT Series  |   KK4BK Series  |   KK4BU Series  |   TAJ5BK Series  |   TAJ5BU Series
About B-Series Fittings:
  • A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread Dia x Pitch Tube OD C
Cut-Off Factor		 D
Drop		 CH2 Weight
DashSize (in.) (mm) (mm) (mm) (mm) (mm) lbs/each
B-0412-FM9L 04 1/4" 6.4mm 12x1.5 6mm 29.5mm 26.0mm 14mm 0.13 lbs
B-0414-FM9L 04 1/4" 6.4mm 14x1.5 8mm 28.3mm 32.5mm 17mm 0.15 lbs
B-0416-FM9L 04 1/4" 6.4mm 16x1.5 10mm 28.3mm 32.5mm 19mm 0.17 lbs
B-0418-FM9L 04 1/4" 6.4mm 18x1.5 12mm 28.3mm 35.0mm 22mm 0.20 lbs
B-0516-FM9L 05 5/16" 7.9mm 16x1.5 10mm 33.7mm 38.0mm 19mm 0.20 lbs
B-0616-FM9L 06 3/8" 9.5mm 16x1.5 10mm 32.8mm 38.0mm 19mm 0.22 lbs
B-0618-FM9L 06 3/8" 9.5mm 18x1.5 12mm 32.8mm 39.0mm 22mm 0.25 lbs
B-0822-FM9L 08 1/2" 12.7mm 22x1.5 15mm 39.8mm 40.5mm 27mm 0.36 lbs
B-1026-FM9L 10 5/8" 15.9mm 26x1.5 18mm 51.4mm 48.0mm 32mm 0.53 lbs
B-1030-FM9L 10 5/8" 15.9mm 30x2.0 22mm 52.4mm 49.0mm 36mm 0.62 lbs
B-1230-FM9L 12 3/4" 19.0mm 30x2.0 22mm 52.1mm 59.0mm 36mm 0.75 lbs
B-1636-FM9L 16 1" 25.4mm 36x2.0 28mm 77.6mm 68.0mm 41mm 1.23 lbs
