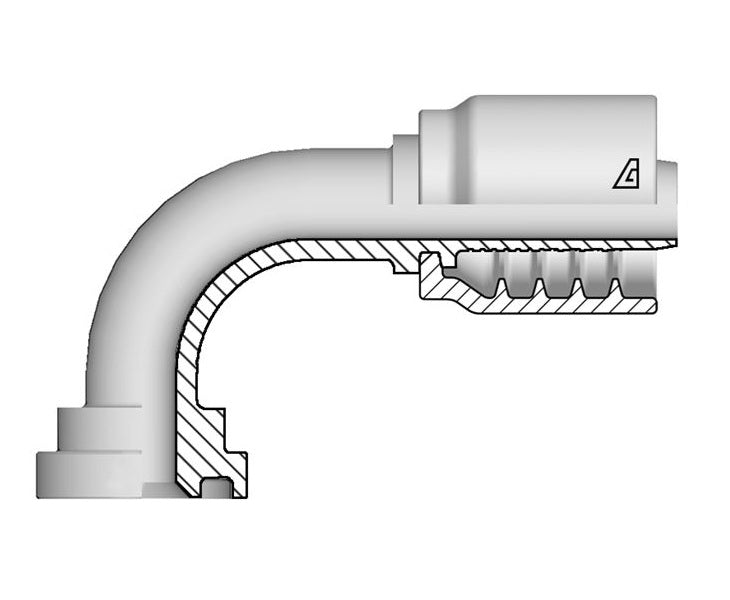

B-1616-C619 Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | SAE J518 | -16 Hose ID x -16 Code 61 Flange | Steel

Save $21.30

$74.55

$74.55 - $74.55

$74.55

$53.25

$53.25 - $53.25

$53.25

Specifications for Variant SKU: B-1616-C619 Kuriyama
Brand:	Alfagomma
Series:	B Series
Shape (Orientation):	90 Degree
Ends Configuration:	1in Code 61 Flange, 1in Hose Barb
Material(s):	Steel
Applicable Specs & Approvals:	SAE J518
Compatible with the following Series:	E3K Series \| TR1MT Series \| TR2MT Series \| TF2MT Series \| TF2TL TWIN Series \| AT3KMT Series \| AT3KST Series \| TF2ST Series \| TR1HT Series \| TR2HT Series \| AT10KJ Series \| TF2LT Series \| KK4BK Series \| KK4BU Series \| TAJ5BK Series \| TAJ5BU Series

About B-Series Fittings:
A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust. 3000 PSI
Material:
Steel


Part Number	Hose ID Size			Flange		Q	C Cut-Off Factor	D Drop	Weight
Part Number	DashSize	(in.)	(mm)	DashSize	(in)	(mm)	(mm)	(mm)	lbs/each
B-0808-C619	08	1/2"	12.7mm	08	1/2"	30.2mm	45.8mm	42.0mm	0.39 lbs
B-0812-C619	08	1/2"	12.7mm	12	3/4"	38.1mm	45.3mm	51.0mm	0.52 lbs
B-1212-C619	12	3/4"	19.0mm	12	3/4"	38.1mm	59.7mm	58.0mm	0.81 lbs
B-1216-C619	12	3/4"	19.0mm	16	1	44.5mm	66.2mm	64.5mm	0.97 lbs
B-1616-C619	16	1"	25.4mm	16	1	44.5mm	70.6mm	67.0mm	1.18 lbs
B-1620-C619	16	1"	25.4mm	20	1-1/4	50.8mm	73.6mm	71.0mm	1.30 lbs
B-1624-C619	16	1"	25.4mm	24	1-1/2	60.3mm	93.1mm	75.0mm	2.07 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
