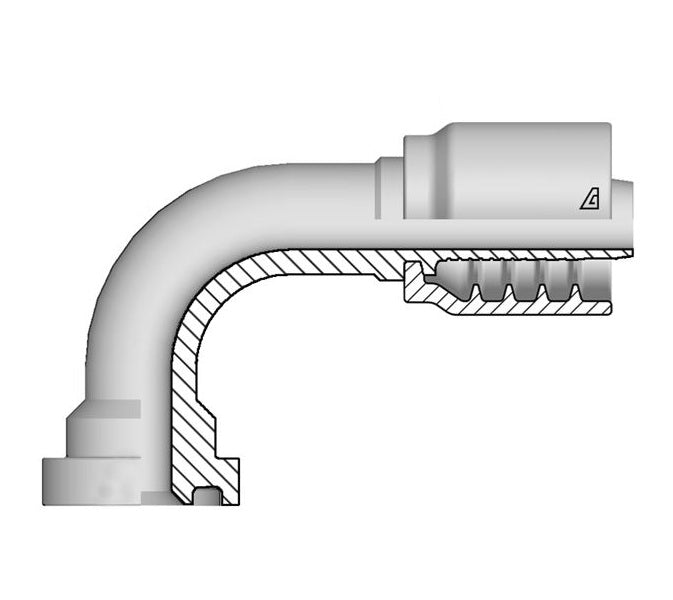

B-1616-C629 Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | SAE J518 | -16 Hose ID x -16 Code 62 Flange | Steel

B-1616-C629 Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | SAE J518 | -16 Hose ID x -16 Code 62 Flange | Steel

Save $24.08 Save $24.08
$84.27
$84.27 - $84.27
$84.27
$60.19
$60.19 - $60.19
$60.19

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | SAE J518 | Hose Barb x Code 62 Flange
Specifications for Variant SKU: B-1616-C629 Kuriyama
Brand: Alfagomma
Series: B Series
Shape (Orientation): 90 Degree
Ends Configuration: 1in Code 62 Flange, 1in Hose Barb
Material(s): Steel
Applicable Specs & Approvals: SAE J518
Compatible with the following Series: E3K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   TF2TL TWIN Series  |   AT3KMT Series  |   AT3KST Series  |   TF2ST Series  |   TR1HT Series  |   TR2HT Series  |   AT10KJ Series  |   TF2LT Series  |   KK4BK Series  |   KK4BU Series  |   TAJ5BK Series  |   TAJ5BU Series
About B-Series Fittings:
  • A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
  • 6000 PSI
Material:
  • Steel
Part Number Hose ID Size Flange Q C
Cut-Off Factor		 D
Drop		 Weight
DashSize (in.) (mm) DashSize (in) (mm) (mm) (mm) lbs/each
B-0808-C629 08 1/2" 12.7mm 08 1/2" 31.8mm 47.8mm 46mm 0.43 lbs
B-0812-C629 08 1/2" 12.7mm 12 3/4" 41.3mm 47.8mm 54mm 0.67 lbs
B-1012-C629 10 5/8" 15.9mm 12 3/4" 41.3mm 49.9mm 55mm 0.67 lbs
B-1212-C629 12 3/4" 19.0mm 12 3/4" 41.3mm 63.2mm 61mm 0.92 lbs
B-1216-C629 12 3/4" 19.0mm 16 1" 47.6mm 63.2mm 66mm 1.09 lbs
B-1616-C629 16 1" 25.4mm 16 1 47.6mm 73.6mm 75mm 1.36 lbs
B-1620-C629 16 1" 25.4mm 20 1-1/4 54.0mm 77.6mm 78mm 1.60 lbs
