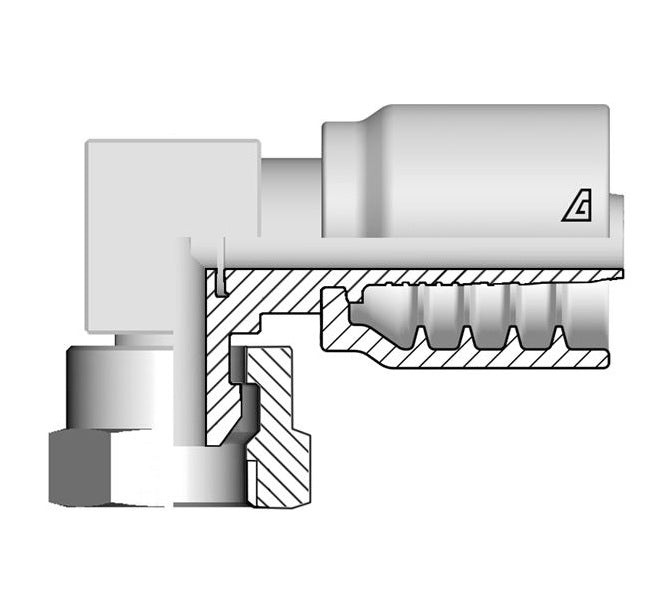

B-1616-FBC9 Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Compact 90° Elbow | -16 Hose ID x -16 Female BSPP 60° Cone | Steel

Name: B-1616-FBC9 Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Compact 90° Elbow | -16 Hose ID x -16 Female BSPP 60° Cone | Steel
Brand: Kuriyama
SKU: B-1616-FBC9 Kuriyama
Price: 46.1 USD
Availability: InStock

Save $18.44

$64.54

$64.54 - $64.54

$64.54

$46.10

$46.10 - $46.10

$46.10

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Compact 90° Elbow | Hose Barb x Female BSPP 60° Cone

Specifications for Variant SKU: B-1616-FBC9 Kuriyama
Brand:	Alfagomma
Series:	B Series
Shape (Orientation):	90 Degree
Ends Configuration:	1in Hose Barb, 1in Female BSPP
Material(s):	Steel
Special Properties:	Compact Elbow
Compatible with the following Series:	E3K Series \| TR1MT Series \| TR2MT Series \| TF2MT Series \| TF2TL TWIN Series \| AT3KMT Series \| AT3KST Series \| TF2ST Series \| TR1HT Series \| TR2HT Series \| AT10KJ Series \| TF2LT Series \| KK4BK Series \| KK4BU Series \| TAJ5BK Series \| TAJ5BU Series

About B-Series Fittings:
A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.
Material:
Steel


Part Number	Hose ID Size			F Thread		C Cut-Off Factor	D Drop	CH2	Weight
Part Number	DashSize	(in.)	(mm)	DashSize	Size (in) - TPI	(mm)	(mm)	(mm)	lbs/each
B-0404-FBC9	04	3/8"	6.4mm	04	1/4-19	16.8mm	19.5mm	19mm	0.13 lbs
B-0606-FBC9	06	3/8"	9.5mm	06	3/8-19	19.5mm	21.5mm	22mm	0.16 lbs
B-0808-FBC9	08	1/2"	12.7mm	08	1/2-14	22.2mm	22.5mm	27mm	0.27 lbs
B-1212-FBC9	12	3/4"	19.0mm	12	3/4-14	26.7mm	31.0mm	32mm	0.66 lbs
B-1616-FBC9	16	1"	25.4mm	16	1-11	34.5mm	27.5mm	38mm	0.96 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
