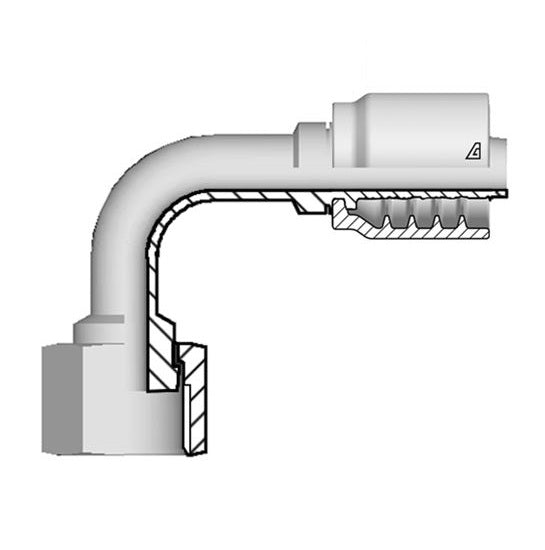

B-1616-FO9S Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Short Drop | -16 Hose ID x -16 Female O-Ring Face Seal | Steel

B-1616-FO9S Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Short Drop | -16 Hose ID x -16 Female O-Ring Face Seal | Steel

Save $17.26 Save $17.26
$60.41
$60.41 - $60.41
$60.41
$43.15
$43.15 - $43.15
$43.15

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 90° Elbow | Short Drop | Hose Barb x Female O-Ring Face Seal
Specifications for Variant SKU: B-1616-FO9S Kuriyama
Brand: Alfagomma
Series: B Series
Shape (Orientation): 90 Degree
Ends Configuration: 1in Hose Barb, 1in Female O-Ring Face Seal
Material(s): Steel
Special Properties: Short Drop
Compatible with the following Series: E3K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   TF2TL TWIN Series  |   AT3KMT Series  |   AT3KST Series  |   TF2ST Series  |   TR1HT Series  |   TR2HT Series  |   AT10KJ Series  |   TF2LT Series  |   KK4BK Series  |   KK4BU Series  |   TAJ5BK Series  |   TAJ5BU Series
About B-Series Fittings:
  • A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off
Factor		 D
Drop		 CH2 Weight
DashSize (in.) (mm) DashSize Size(in) - TPI (mm) (mm) (mm) lbs/each
B-0404-FO9S 04 1/4" 6.4mm 04 9/16-18 28.5mm 21.0mm 17mm 0.15 lbs
B-0406-FO9S 04 1/4" 6.4mm 06 11/16-16 32.0mm 23.0mm 22mm 0.19 lbs
B-0506-FO9S 05 5/16" 7.9mm 06 11/16-16 32.0mm 25.0mm 22mm 0.23 lbs
B-0606-FO9S 06 3/8" 9.5mm 06 11/16-16 41.8mm 25.0mm 22mm 0.23 lbs
B-0608-FO9S 06 3/8" 9.5mm 08 13/16-16 41.8mm 29.0mm 24mm 0.27 lbs
B-0808-FO9S 08 1/2" 12.7mm 08 13/16-16 39.8mm 29.0mm 24mm 0.31 lbs
B-0810-FO9S 08 1/2" 12.7mm 10 1-14 46.3mm 32.5mm 30mm 0.45 lbs
B-0812-FO9S 08 1/2" 12.7mm 12 1-3/16-12 50.1mm 35.0mm 36mm 0.69 lbs
B-1010-FO9S 10 5/8" 15.9mm 10 1-14 52.3mm 32.5mm 30mm 0.52 lbs
B-1012-FO9S 10 5/8" 15.9mm 12 1-3/16-12 55.4mm 49.0mm 36mm 0.71 lbs
B-1212-FO9S 12 3/4" 19.0mm 12 1-3/16-12 60.6mm 51.0mm 36mm 0.84 lbs
B-1216-FO9S 12 3/4" 19.0mm 16 1-7/16-12 61.6mm 56.0mm 41mm 0.77 lbs
B-1616-FO9S 16 1" 25.4mm 16 1-7/16-12 80.0mm 58.0mm 41mm 1.27 lbs
B-1620-FO9S 16 1" 25.4mm 20 1-11/16-12 85.4mm 26.0mm 50mm 1.62 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
