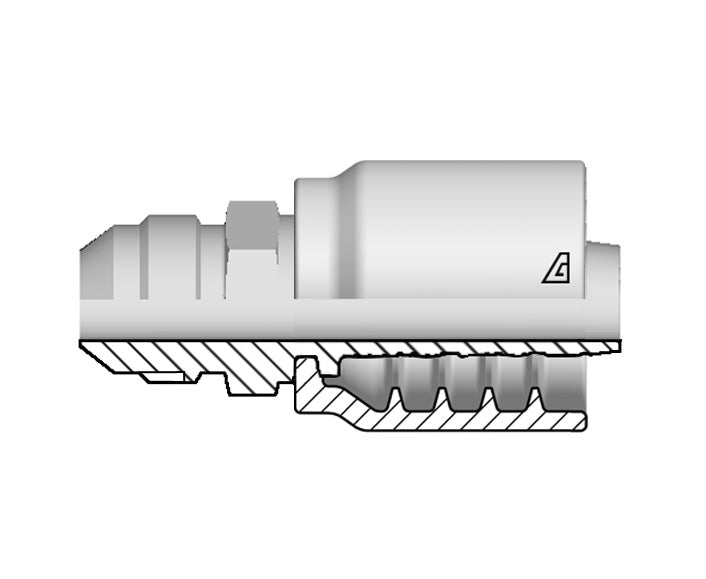

B-1616-MJIC Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -16 Hose ID x -16 Male JIC 37° Cone | Steel

B-1616-MJIC Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -16 Hose ID x -16 Male JIC 37° Cone | Steel

Save $8.74 Save $8.74
$30.58
$30.58 - $30.58
$30.58
$21.84
$21.84 - $21.84
$21.84

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Hose Barb x Male JIC 37° Cone
Specifications for Variant SKU: B-1616-MJIC Kuriyama
Brand: Alfagomma
Series: B Series
Shape (Orientation): Straight
Ends Configuration: 1in Hose Barb, 1in Male JIC
Material(s): Steel
Compatible with the following Series: E3K Series  |   TR1MT Series  |   TR2MT Series  |   TF2MT Series  |   TF2TL TWIN Series  |   AT3KMT Series  |   AT3KST Series  |   TF2ST Series  |   TR1HT Series  |   TR2HT Series  |   AT10KJ Series  |   TF2LT Series  |   KK4BK Series  |   KK4BU Series  |   TAJ5BK Series  |   TAJ5BU Series
About B-Series Fittings:
  • A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off
Factor		 CH1 Weight
DashSize (in.) (mm) DashSize Size(in) - TPI (mm) (mm) lbs/each
B-0404-MJIC 04 1/4" 6.4mm 04 7/16-20 25.3mm 12mm 0.10 lbs
B-0405-MJIC 04 1/4" 6.4mm 05 1/2-20 25.3mm 14mm 0.11 lbs
B-0406-MJIC 04 1/4" 6.4mm 06 9/16-18 26.3mm 17mm 0.13 lbs
B-0505-MJIC 05 5/16" 7.9mm 05 1/2-20 25.3mm 14mm 0.13 lbs
B-0506-MJIC 05 5/16" 7.9mm 06 9/16-18 26.3mm 17mm 0.14 lbs
B-0606-MJIC 06 3/8" 9.5mm 06 9/16-18 26.3mm 17mm 0.15 lbs
B-0608-MJIC 06 3/8" 9.5mm 08 3/4-16 29.8mm 19mm 0.19 lbs
B-0610-MJIC 06 3/8" 9.5mm 10 7/8-14 33.8mm 24mm 0.24 lbs
B-0808-MJIC 08 1/2" 12.7mm 08 3/4-16 30.6mm 19mm 0.22 lbs
B-0810-MJIC 08 1/2" 12.7mm 10 7/8-14 34.6mm 24mm 0.28 lbs
B-0812-MJIC 08 1/2" 12.7mm 12 1-1/16-12 37.1mm 27mm 0.33 lbs
B-1010-MJIC 10 5/8" 15.9mm 10 7/8-14 34.6mm 24mm 0.31 lbs
B-1012-MJIC 10 5/8" 15.9mm 12 1-1/16-12 37.1mm 27mm 0.37 lbs
B-1212-MJIC 12 3/4" 19.0mm 12 1-1/16-12 37.6mm 27mm 0.44 lbs
B-1214-MJIC 12 3/4" 19.0mm 14 1-3/16-12 40.1mm 32mm 0.51 lbs
B-1216-MJIC 12 3/4" 19.0mm 16 1-5/16-12 42.6mm 36mm 0.62 lbs
B-1616-MJIC 16 1" 25.4mm 16 1-5/16-12 43.4mm 36mm 0.75 lbs
B-1620-MJIC 16 1" 25.4mm 20 1-5/8-12 46.9mm 46mm 1.01 lbs
