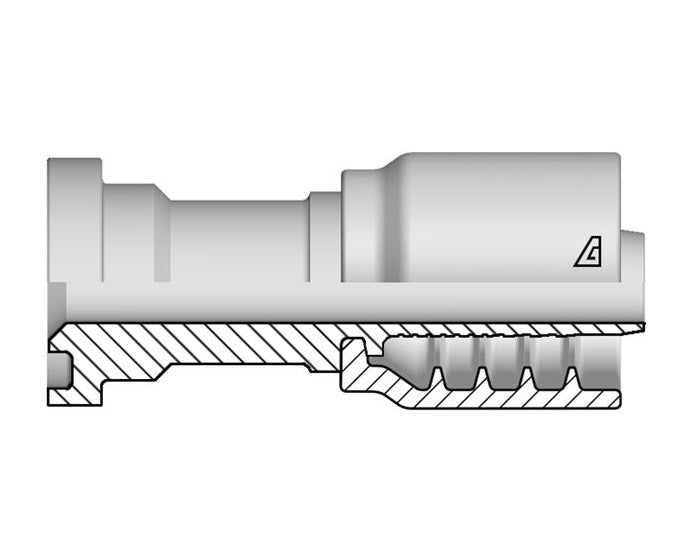

B-1620-C61S Alfagomma by Kuriyama | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | -08 Hose ID x -08 Code 61 Flange | Steel

Save $19.16

$67.07

$67.07 - $67.07

$67.07

$47.91

$47.91 - $47.91

$47.91

Kuriyama of America Inc.
Alfagomma | B Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | Hose Barb x Code 61 Flange

Specifications for Variant SKU: B-1620-C61S Kuriyama
Brand:	Alfagomma
Series:	B Series
Shape (Orientation):	Straight
Ends Configuration:	1in Code 61 Flange, 1-1/4in Hose Barb
Material(s):	Steel
Applicable Specs & Approvals:	SAE J518
Compatible with the following Series:	E3K Series \| TR1MT Series \| TR2MT Series \| TF2MT Series \| TF2TL TWIN Series \| AT3KMT Series \| AT3KST Series \| TF2ST Series \| TR1HT Series \| TR2HT Series \| AT10KJ Series \| TF2LT Series \| KK4BK Series \| KK4BU Series \| TAJ5BK Series \| TAJ5BU Series

About B-Series Fittings:
A one-piece non-skive crimp fitting for all braided hoses (up to 1" ID).
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust. 3000 PSI
Material:
Steel


Part Number	Hose ID Size			Flange		Q	C Cut-Off Factor	Weight
Part Number	DashSize	(in.)	(mm)	DashSize	(in)	(mm)	(mm)	lbs/each
B-0808-C61S	08	1/2"	12.7mm	08	1/2"	30.2mm	41.0mm	0.35 lbs
B-0812-C61S	08	1/2"	12.7mm	12	3/4"	38.1mm	42.0mm	0.44 lbs
B-1212-C61S	12	3/4"	19.0mm	12	3/4"	38.1mm	42.5mm	0.57 lbs
B-1216-C61S	12	3/4"	19.0mm	16	1"	44.5mm	50.5mm	0.71 lbs
B-1616-C61S	16	1"	25.4mm	16	1"	44.5mm	51.4mm	0.90 lbs
B-1620-C61S	16	1"	25.4mm	20	1-1/4"	50.8mm	53.9mm	1.00 lbs
