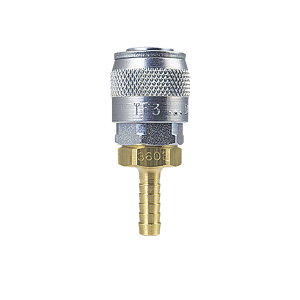

B-2JS3-B Breco by Foster | Quick Disconnect | J Series | 1/4" Automatic Socket | 3/8" ID | Hose Stem | Straight | Brass

B-2JS3-B Breco by Foster | Quick Disconnect | J Series | 1/4" Automatic Socket | 3/8" ID | Hose Stem | Straight | Brass

Save $7.37 Save $7.37
$18.43
$18.43 - $18.43
$18.43
$11.06
$11.06 - $11.06
$11.06

Foster Quick Disconnects - TF & J Series 1/4" Automatic Sockets - Breco
Specifications for Variant SKU: B-2JS3-B ZSi-Foster
Brand: Breco
Series: J Series
Shape (Orientation): Straight
Material(s): Brass
Interchange:
  • Interchange with Tru-Flate
  • TF Series Couplers (pneumatic) up to 300 psi connect with Tru-Flate design, commonly called the automotive interchange. They have manual sleeves and are single shut off quick couplings. The steel tubular valve delivers high air flow with minimal pressure drop. Couplers and Nipples are available in a wide range of sizes and materials for use in a variety of applications with air or fluid.
Features:
  • Developed for the automotive industry
  • High flow valves with minimal pressure drop
  • Integral Sleeve guard helps prevent accidental disconnect
  • Grip-ring sleeve version has a larger knurled diameter to provide easy operation when gloves are worn
Specifications:
  • Type: One Way Shut-Off
  • Rated Pressure: 300 PSIG
  • Operation: Manual - Automatic Push to Connect;
  • Size: Sizes: 1/4", 3/8", (For 1/2" use Industrial Interchange product)
Applications
  • Air compressors, Pneumatic Tools
  • Grease guns, Paint applicators
Female Coupler Part Number Brand Male Plug Part Number I.D. Size Description
TF3603 Foster TF16 1/4" Brass/Steel
TF3653 Foster - 15/16" Brass/Steel
B-2JS3-B Breco - 3/8" Brass
TF3703 Foster TF17 3/8" Brass/Steel
Requires Hose Clamps
