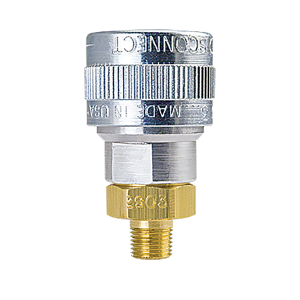

B-2TLM3-S Breco by Foster | TL Series | Twist Lock Quick Disconnect | 1/4" Automatic Socket x 3/8" Male NPT Thread | Straight | Aluminum/Steel/Brass

B-2TLM3-S Breco by Foster | TL Series | Twist Lock Quick Disconnect | 1/4" Automatic Socket x 3/8" Male NPT Thread | Straight | Aluminum/Steel/Brass

Save $9.57 Save $9.57
$23.92
$23.92 - $23.92
$23.92
$14.35
$14.35 - $14.35
$14.35

Foster Quick Disconnects - SHD & TL Series Automatic 1/4" Sockets - Breco
Specifications for Variant SKU: B-2TLM3-S ZSi-Foster
Brand: Breco
Series: TL Series
Shape (Orientation): Straight
Material(s): Aluminum, Steel, Brass
Interchange:
  • Interchanges with Schrader Standard & Heavy Duty
Features:
  • Engineered for speedy coupling and uncoupling. To lock - push in; To unlock - rotate sleeve 1/8 turn.
  • Designed to protect against accidental uncoupling. A variety of types and sizes are available to meet specific needs.
  • Standard Twist-Lock couplings are ideal for low to medium air flows, such as air tools.
Specifications:
  • Type: One Way Shut-Off
  • Rated Pressure: 300 PSIG
  • Temperature Range (Nitrile seal): -10 deg. to +165 deg. F
  • Locking Device: Twist-Lock
  • Vacuum Service: 27 HG
Materials:
  • Aluminum bodies and zinc plated steel sleeves. Buna-N seals. Brass adapters.
Operation:
  • Automatic Push to Connect; Twist-to-release
Female CouplerPart Number Brand Male PlugPart Number Size Description
SHD2903 Foster SHD12 1/8" Aluminum/Steel/Brass
SHD2903S/S Foster - 1/8" 303 Stainless Steel
B-2TLM2-S Breco B-TL2M2-S 1/4" Aluminum/Steel/Brass
SHD3103 Foster SHD10 1/4" Aluminum/Steel/Brass
SHD3103 Foster - 1/4" Aluminum/Steel/Brass w/Silicone Seal
SHD3103S/S Foster SHD10S/S 1/4" 303 Stainless Steel
SHD3303 Foster - 3/8" Aluminum/Steel/Brass
B-2TLM3-S Breco - 3/8" Aluminum/Steel/Brass
SHD3303S/S Foster - 3/8" 303 Stainless Steel
