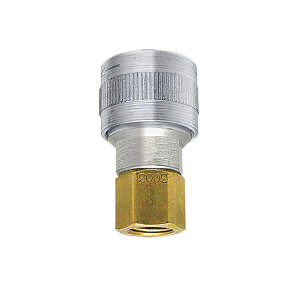

B-4TLF4-S Breco by Foster | Quick Disconnect | TL Series | 1/2" Automatic Socket x 1/2" Female NPT Thread | Straight | Aluminum/Steel/Brass

B-4TLF4-S Breco by Foster | Quick Disconnect | TL Series | 1/2" Automatic Socket x 1/2" Female NPT Thread | Straight | Aluminum/Steel/Brass

Save $14.74 Save $14.74
$36.85
$36.85 - $36.85
$36.85
$22.11
$22.11 - $22.11
$22.11

Foster Quick Disconnects - SHD & TL Series Automatic 1/2" Sockets - Breco
Specifications for Variant SKU: B-4TLF4-S ZSi-Foster
Brand: Breco
Series: TL Series
Shape (Orientation): Straight
Material(s): Aluminum, Steel, Brass
Interchange:
  • Interchanges with Schrader Standard & Heavy Duty
Features:
  • Engineered for speedy coupling and uncoupling. To lock - push in; To unlock - rotate sleeve 1/8 turn.
  • Designed to protect against accidental uncoupling. A variety of types and sizes are available to meet specific needs.
  • Standard Twist-Lock couplings are ideal for low to medium air flows, such as air tools.
Specifications:
  • Type: One Way Shut-Off
  • Rated Pressure: 300 PSIG
  • Temperature Range (Nitrile seal): -10 deg. to +165 deg. F
  • Locking Device: Twist-Lock
  • Vacuum Service: 27 HG
Materials:
  • Aluminum bodies and zinc plated steel sleeves. Buna-N seals. Brass adapters.
Operation:
  • Automatic Push to Connect; Twist-to-release
Female CouplerPart Number Brand Male PlugPart Number Size Description
SHD4015 Foster - 1/4" Aluminum/Steel/Brass
SHD5005 Foster SHD53 3/8" Aluminum/Steel/Brass
B-4TLF3-S Breco B-TL4F3-S 3/8" Aluminum/Steel/Brass
SHD5205 Foster - 1/2" Aluminum/Steel/Brass
B-4TLF4-S Breco - 1/2" Aluminum/Steel/Brass
SHD5405 Foster - 3/4" Aluminum/Steel/Brass
B-4TLF6-S Breco - 3/4" Aluminum/Steel/Brass
ZSi Foster

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
