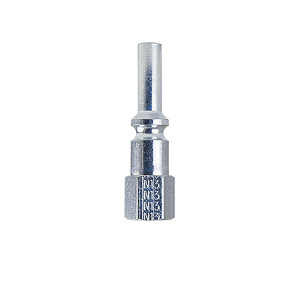

B-L2F2-S Breco by Foster | L Series | Quick Disconnect Socket & Plug | 1/4" Plug x 1/4" Female NPT Thread | Steel

B-L2F2-S Breco by Foster | L Series | Quick Disconnect Socket & Plug | 1/4" Plug x 1/4" Female NPT Thread | Steel

Save $0.94 Save $0.94
$8.49
$8.49 - $8.49
$8.49
$7.55
$7.55 - $7.55
$7.55

Foster Quick Disconnects - LN & L Series 1/4" Plugs - Breco
Specifications for Variant SKU: B-L2F2-S ZSi-Foster
Brand: Breco
Series: L Series
Shape (Orientation): Straight
Material(s): Steel
Interchange:
  • Foster LN Series couplings are interchangeable with Lincoln's "Long Nose" series couplings and offer quick coupling of all air-operated equipment. They are only available in 1/4" body size, brass and steel construction.
Features:
  • Locking mechanism prevents accidental coupler detachment.
  • Increased air flow due to a larger air passage.
  • Automatic air check valve shuts off air instantly when uncoupled, providing leak-proof seal.
  • Corrosion resistant steel for long service life.
  • Free swivel helps prevent kinking or curling of air hoses.
Specifications:
  • Type: One Way Shut-Off
  • Rated Pressure: 300 PSIG
  • Temperature Range (std seals): -40 deg. F to +250 deg. F.
  • Locking Device: Balls or pins
Operation:
  • Manual - Socket sleeve must be retracted to connect and disconnect
  • Automatic - Push to Connect
Female CouplerPart Number Brand Male PlugPart Number Size Description
LN2803 Foster LN13 1/8" Brass/Steel
LN3003 Foster LN11 1/4" Brass/Steel
B-2LF2-B Breco B-L2F2-S 1/4" Brass
LN3203 Foster - 3/8" Brass/Steel
