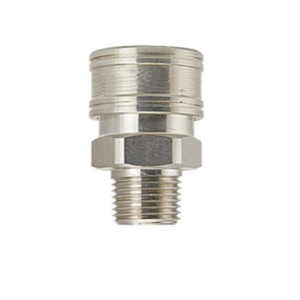

B-VHC6-6M Breco by Foster | FH Series | Two Way Valved Sockets | Quick Disconnect | 3/8" Male NPT Thread | Straight | Steel

Save $12.18

$62.35

$62.35 - $62.35

$62.35

$50.17

$50.17 - $50.17

$50.17

Foster Quick Disconnects - FH Series, Two Way Valved Sockets - Breco

Specifications for Variant SKU: B-VHC6-6M ZSi-Foster
Brand:	Breco
Series:	H Series
Shape (Orientation):	Straight
Material(s):	Steel

Applications:
FH & FIH Series Quick Disconnect has provided years of reliable service on hydraulic/pneumatic applications in the handling of gases and fluids. The FH & FIH Series couplings are engineered to meet or exceeds MIL-C-51234. Options are available for static pressure hydraulic systems and also for pneumatic air tool use. The FIH Series sockets & plugs are for pneumatic applications. The FIH sockets have a valve with 360 deg. contact with plug.
Interchange:
FH Series interchanges with Snap-Tite "H" Series. FIH Series interchanges with Snap-Tite "IH" Series. Within each series, only sockets and plugs of the same size will couple together.
Features:
Type: FH - Two Way Shut-Off and Straight-Thru FIH - One Way Shut-Off Operation: Manual - Socket sleeve must be manually retracted to connect and disconnect. Rated Pressure: Rated Pressure as defined by ANSI/B93.2-1986, non-shock service. Socket Features: Latch Mechanism Manual connect and disconnect Steel sleeves are hardened to provide maximum service life Material and Finish Machined from solid bar stock Steel components are zinc plated Coupled Seal Valved units incorporate a Teflon back-up ring to with-stand dynamic impulse Seals Buna-N (Nitrile) seals are standard Valve seals are crimped in place to maintain integrity during excessive flow conditions

Body Size	FH Series, Two Way		FH, Straight Thru		FIH Series, One Way
	Steel PSIG	Brass PSIG	Steel PSIG	Brass PSIG	Steel PSIG
1/4"	3250	2000	3000	3000	3000
3/8"	2250	1200	4000	3500	2250
1/2"	1800	1200	4000	2500	2000

Female CouplerPart Number	Male PlugPart Number	Snap-Tite No. (Breco)	MPT Thread	Description
FHS2M2	FHP2M2 FHP2M2B	B-VHC4-4M	1/4"	Steel
FHS2M2-101	-	-	1/4"	Steel w/Viton Seal
BLFHS2M2	-	-	1/4"	Ball Lock, Steel
FHS3M3	FHP3M3 FHP3M3B	B-VHC6-6M	3/8"	Steel
BLFHS3M3	-	-	3/8"	Ball Lock, Steel
FHS4M4	FHP4M4 FHP4M4B	-	1/2"	Steel
FHS4M4-101	-	-	1/2"	w/Viton Seal
BLFHS4M4	-	-	1/2"	Ball Lock, Steel
B-VHC12-12M	-	-	3/4"	Steel
FHS2M2B	FHP2M2 FHP2M2B	B-VHC4-4M-B	1/4"	Brass
BLFHS2M2B	-	-	1/4"	Ball Lock, Brass
FHS3M3B	FHP3M3 FHP3M3B	B-VHC6-6M-B	3/8"	Brass
BLFHS3M3B	-	-	3/8"	Ball Lock, Brass
FHS4M4B	FHP4M4 FHP4M4B	-	1/2"	Brass
BLFHS4M4B	-	-	1/2"	Ball Lock, Brass
FHS4M4B-103	-	-	1/2"	Brass w/EPDM Seal

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
