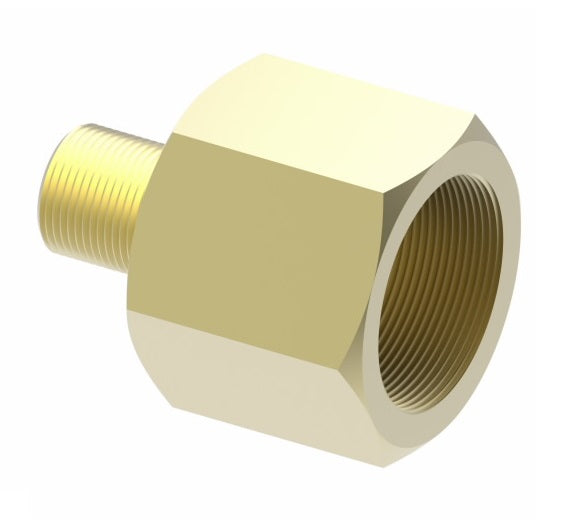

B1366X8 by Danfoss | Air Brake Adapter for Copper Tubing | Female Connector (Body Only) | 1/2" Tube OD x 3/8" Female Pipe | Brass

Name: B1366X8 by Danfoss | Air Brake Adapter for Copper Tubing | Female Connector (Body Only) | 1/2" Tube OD x 3/8" Female Pipe | Brass
Brand: Danfoss/Eaton
SKU: B1366X8 Danfoss
Price: 18.88 USD
Availability: InStock

$18.88 - $18.88

$18.88

$18.88 - $18.88

$18.88

Aeroquip® by Danfoss
Air Brake Adapter for Copper Tubing - Female Connector

Quantity

Specifications for Variant SKU: B1366X8 Danfoss
Material(s):	Brass

Applications:
Air brake systems.
Advantages:
Easy to assemble (no flaring). May be used with nylon tubing by replacing long nut and spherical sleeve with insert, rigid sleeve and nut. Fair Vibration Resistance.
Used With:
Copper tubing in air brake systems.
Material:
CA360 Brass.
Pressure:
Maximum operating pressure of 150 psi.
Temperature Range:
-65°F to +250°F (-53°C to +121°C) with copper tubing.
Conformance:
Ref. SAE No. 120103BA Meets specifications and standards of SAE and DOT.


Brass Part Number	Brass Body Only Part Number	Tube O.D.	Female Pipe Thread	Hex C	D	L
1366X6	-	3/8"	1/4"	11/16"	0.312"	1.19"
1366X6X6	B1366X6X6	3/8"	3/8"	7/8"	0.312"	1.19"
1366X8	B1366X8	1/2"	3/8"	7/8"	0.406"	1.28"
