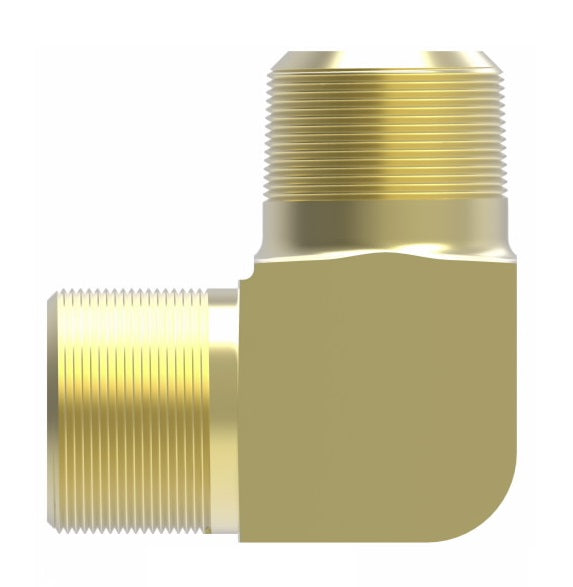

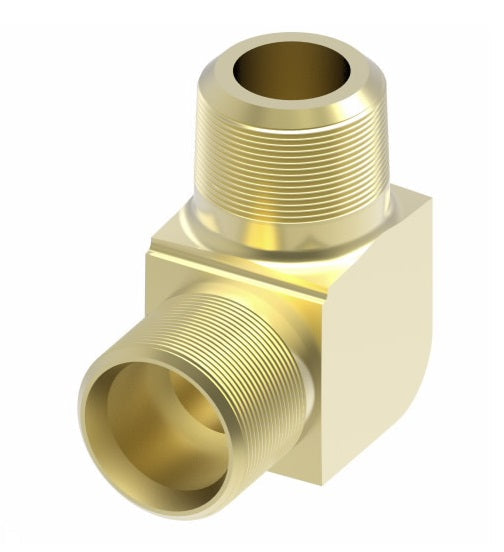

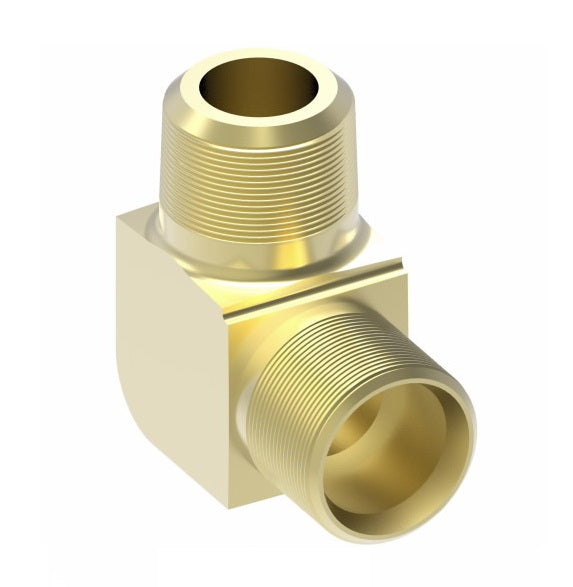

B1369X10 by Danfoss | Air Brake Adapter for Copper Tubing | Male Connector 90° Elbow (Body Only) | 5/8" Tube OD x 1/2" Male Pipe | Brass
B1369X10 by Danfoss | Air Brake Adapter for Copper Tubing | Male Connector 90° Elbow (Body Only) | 5/8" Tube OD x 1/2" Male Pipe | Brass
B1369X10 by Danfoss | Air Brake Adapter for Copper Tubing | Male Connector 90° Elbow (Body Only) | 5/8" Tube OD x 1/2" Male Pipe | Brass
B1369X10 by Danfoss | Air Brake Adapter for Copper Tubing | Male Connector 90° Elbow (Body Only) | 5/8" Tube OD x 1/2" Male Pipe | Brass

B1369X10 by Danfoss | Air Brake Adapter for Copper Tubing | Male Connector 90° Elbow (Body Only) | 5/8" Tube OD x 1/2" Male Pipe | Brass

$16.18 - $16.18
$16.18
$16.18 - $16.18
$16.18

Aeroquip® by Danfoss
Air Brake Adapter for Copper Tubing - Male Connector
Specifications for Variant SKU: B1369X10 Danfoss
Shape (Orientation): 90 Degree
Material(s): Brass
Applications:
  • Air brake systems.
Advantages:
  • Easy to assemble (no flaring).
  • May be used with nylon tubing by replacing long nut and spherical sleeve with insert, rigid sleeve and nut.
  • Fair Vibration Resistance.
Used With:
  • Copper tubing in air brake systems.
Material:
  • CA360 Brass.
Pressure:
  • Maximum operating pressure of 150 psi.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) with copper tubing.
Conformance:
  • Ref. SAE No. 120202BA
  • Meets specifications and standards of SAE and DOT.
Brass
Part Number 		Brass
With Sealant
Part Number 		Brass
Body Only
Part Number 		Tube O.D. Male Pipe Thread D D1 M N
1369X4 - B1369X4 1/4" 1/8" 0.188" 0.188" 0.63" 0.67"
1369X4X4 - B1369X4X4 1/4" 1/4" 0.190" 0.312" 0.69" 0.88"
1369X6X2 - B1369X6X2 3/8" 1/8" 0.312" 0.188" 0.73" 0.75"
1369X6 - B1369X6 3/8" 1/4" 0.317" 0.312" 0.80" 0.93"
1369X6X6 - B1369X6X6 3/8" 3/8" 0.317" 0.406" 0.85" 0.92"
1369X6X8 - - 3/8" 1/2" 0.317" 0.562" 0.95" 1.11"
1369X8X4 - - 1/2" 1/4" 0.409" 0.313" 0.87" 1.00"
1369X8 - B1369X8 1/2" 3/8" 0.409" 0.409" 0.94" 1.00"
1369X8X8 - B1369X8X8 1/2" 1/2" 0.409" 0.531" 1.04" 1.19"
1369X10X6 - B1369X10X6 5/8" 3/8" 0.534" 0.406" 1.01" 1.06"
1369X10 - B1369X10 5/8" 1/2" 0.534" 0.531" 1.10" 1.25"
