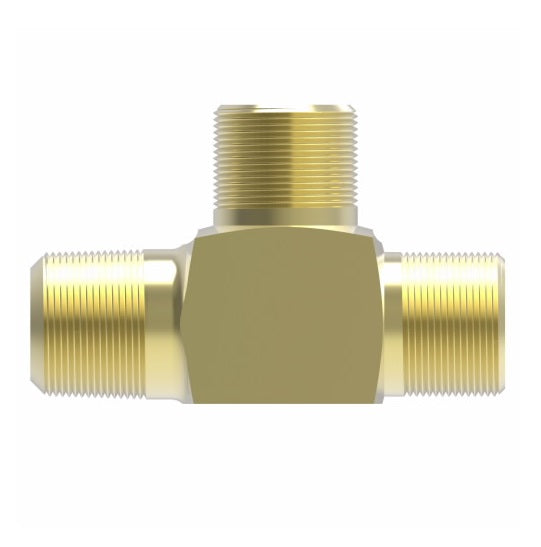

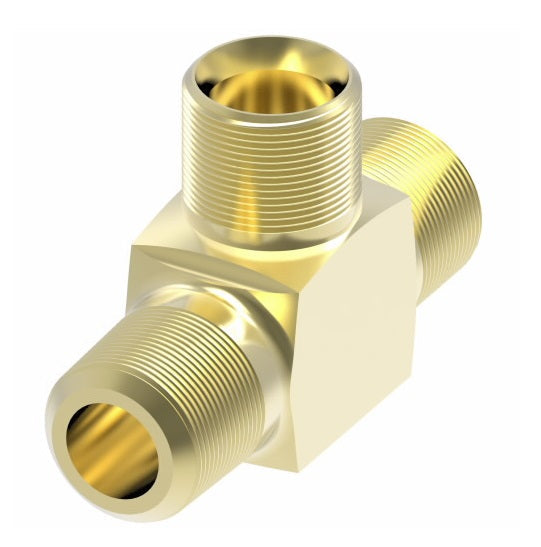

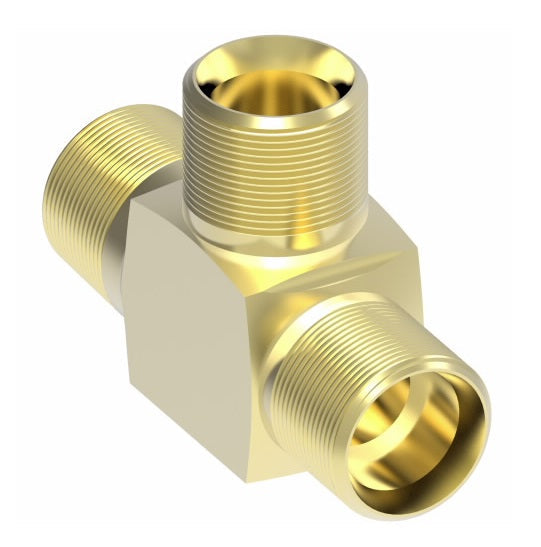

B1371X6X6X6 by Danfoss | Air Brake Adapter for Copper Tubing | Male Connector Run Tee (Body Only) | 3/8" Tube OD x 3/8" Tube OD x 3/8" Tube OD | Brass

B1371X6X6X6 by Danfoss | Air Brake Adapter for Copper Tubing | Male Connector Run Tee (Body Only) | 3/8" Tube OD x 3/8" Tube OD x 3/8" Tube OD | Brass

Name: B1371X6X6X6 by Danfoss | Air Brake Adapter for Copper Tubing | Male Connector Run Tee (Body Only) | 3/8" Tube OD x 3/8" Tube OD x 3/8" Tube OD | Brass
Brand: Danfoss/Eaton
SKU: B1371X6X6X6 Danfoss
Price: 22.86 USD
Availability: InStock

$22.86 - $22.86

$22.86

$22.86 - $22.86

$22.86

Aeroquip® by Danfoss
Air Brake Adapter for Copper Tubing - Male Connector Run Tee

Specifications for Variant SKU: B1371X6X6X6 Danfoss
Shape (Orientation):	Tee
Material(s):	Brass

Applications:
Air brake systems.
Advantages:
Easy to assemble (no flaring). May be used with nylon tubing by replacing long nut and spherical sleeve with insert, rigid sleeve and nut. Fair Vibration Resistance.
Used With:
Copper tubing in air brake systems.
Material:
CA360 Brass.
Pressure:
Maximum operating pressure of 150 psi.
Temperature Range:
-65°F to +250°F (-53°C to +121°C) with copper tubing.
Conformance:
Ref. SAE No. 120424BA Meets specifications and standards of SAE and DOT.


Brass Part Number	Brass Body Only Part Number	Tube O.D.	Male Pipe Thread	D	M	M1	N
1371X6	B1371X6	3/8"	1/4"	0.312"	0.80"	0.80"	0.93"
1371X6X6X6	B1371X6X6X6	3/8"	3/8"	0.406"	0.85"	0.85"	0.92"
