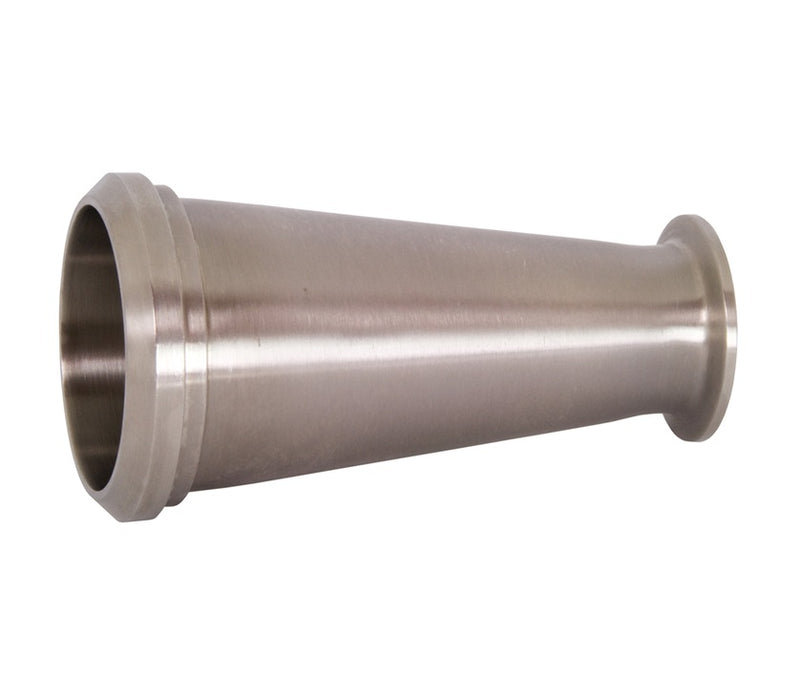

B14C31-G300200 Dixon Valve 3" x 2" Tube OD 304 Stainless Steel Plain Bevel Seat x Clamp Concentric Reducer

B14C31-G300200 Dixon Valve 3" x 2" Tube OD 304 Stainless Steel Plain Bevel Seat x Clamp Concentric Reducer

Save $96.75 Save $96.75
$241.87
$241.87 - $241.87
$241.87
$145.12
$145.12 - $145.12
$145.12

Dixon Sanitary Fittings
Sanitary Clamp Fitting | Plain Bevel Seat x Clamp Concentric Reducer | B14C31 | 304 Stainless Steel

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Specifications for Variant SKU: B14C31-G300200 Dixon
Shape (Orientation): Straight
Material(s): 304 Stainless Steel
Materials:
  • 304 Stainless Steel
Part Number Tube OD
Size		 Dimensions
A B
B14C31-G200150 2" x 1-1/2" 3.25" 0.065"
B14C31-G250150 2-1/2" x 1-1/2" 5.38" 0.065"
B14C31-G250200 2-1/2" x 2" 3.38" 0.065"
B14C31-G300150 3" x 1-1/2" 7.41" 0.065"
B14C31-G300200 3" x 2" 5.41" 0.065"
B14C31-G300250 3" x 2-1/2" 3.41" 0.065"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
