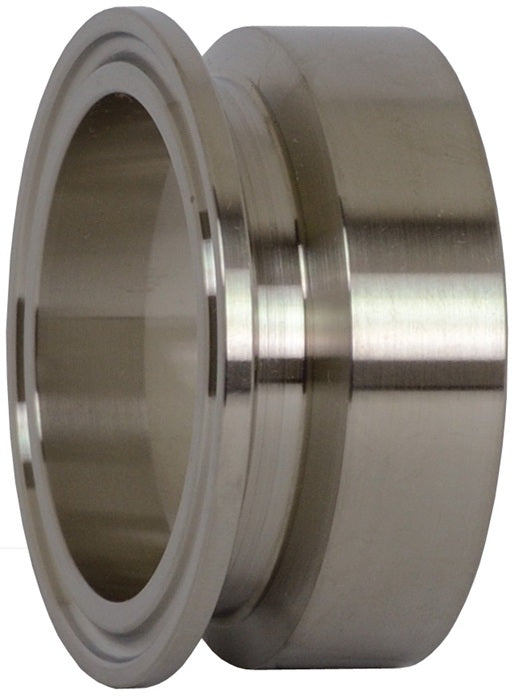

B19MPV-R200 Dixon Valve 316L Stainless Steel 2" Sanitary Clamp x Schedule 5S Pipe Size Weld Adapter

B19MPV-R200 Dixon Valve 316L Stainless Steel 2" Sanitary Clamp x Schedule 5S Pipe Size Weld Adapter

Save $22.85 Save $22.85
$57.12
$57.12 - $57.12
$57.12
$34.27
$34.27 - $34.27
$34.27

Dixon Sanitary Fittings Sanitary Clamp x Schedule 5S Pipe Size Weld Adapter - 316L Stainless Steel

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Specifications for Variant SKU: B19MPV-R200 Dixon
Shape (Orientation): Straight
Ends Configuration: 2in Sanitary Clamp End, 2in Weld End
Material(s): 316L Stainless Steel
Features:
  • 3A sanitary finish ID and OD
Notes:
  • Please note in sizes 1/2" through 12" pipe is known by its nominal inside diameter, which differs from its actual inside diameter. To distinguish pipe sizes from actual measured diameters as used for tube, the terms iron pipe size (IPS) or nominal pipe size (NPS) are usually used. For all pipe sizes, the outside diameter (OD) remains constant; the variations in wall thickness affect the inside diameter (ID).
Part Number Pipe Size Wall Thickness Dimensions

 Weight (Lbs.)
A B C
B19MPV-R100 1" 0.065" 1.320" 1.190" 0.870" 0.2400
B19MPV-R150 1-1/2" 0.065" 1.900" 1.770" 1.370" 0.3000
B19MPV-R200 2" 0.065" 2.380" 2.250" 1.870" 0.3600
B19MPV-R250 2-1/2" 0.084" 2.880" 2.710" 2.370" 0.4300
B19MPV-R300 3" 0.084" 3.500" 3.330" 2.870" 0.6090
B19MPV-R400 4" 0.084" 4.500" 4.330" 3.830" 3.1000
