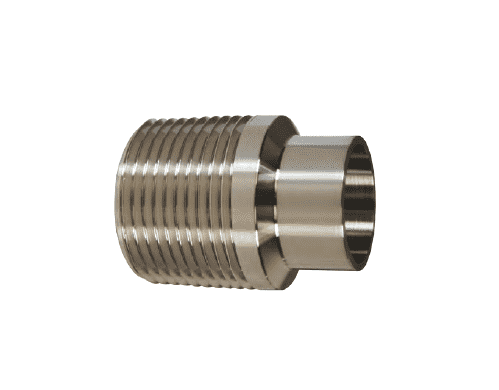

B19WB-G200 Dixon 304 Stainless Steel Sanitary Male NPT x Weld End Adapter - 2" Tube OD

B19WB-G200 Dixon Valve 304 Stainless Steel Sanitary Unpolished Male NPT x Weld End Adapter - 2" Tube OD

Save $13.90 Save $13.90
$34.75
$34.75 - $34.75
$34.75
$20.85
$20.85 - $20.85
$20.85

Dixon Sanitary Fittings
Sanitary Weld Unpolished Adapter | Male NPT x Weld End Adapter | 304 Stainless Steel

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Specifications for Variant SKU: B19WB-G200 Dixon
Shape (Orientation): Straight
Ends Configuration: 2in Male NPT, 2in Weld End
Material(s): 304 Stainless Steel
Special Properties: Unpolished
Features:
  • Finish Unpolished
  • 32Ra finish ID
304 Stainless Steel
Part Number		 316L Stainless Steel
Part Number		 Tube OD Nominal Wall Dimensions
A B C D
- B19WB-R50 1/2" 0.065" 1.630" 0.500" 0.370" 0.500"
- B19WB-R75 3/4" 0.065" 1.630" 0.750" 0.620" 0.820"
B19WB-G100 B19WB-R100 1" 0.065" 1.750" 1.000" 0.870" 1.000"
B19WB-G150 B19WB-R150 1-1/2" 0.065" 1.750" 1.500" 1.370" 1.600"
B19WB-G200 B19WB-R200 2" 0.065" 1.810" 2.000" 1.870" 2.000"
B19WB-G250 - 2-1/2" 0.065" 2.310" 2.500" 2.370" 2.500"
B19WB-G300 B19WB-R300 3" 0.065" 2.500" 3.000" 2.870" 3.000"
B19WB-G400 B19WB-R400 4" 0.083" 2.560" 4.000" 3.830" 4.000"
B19WB-G600 - 6" - - - - -
