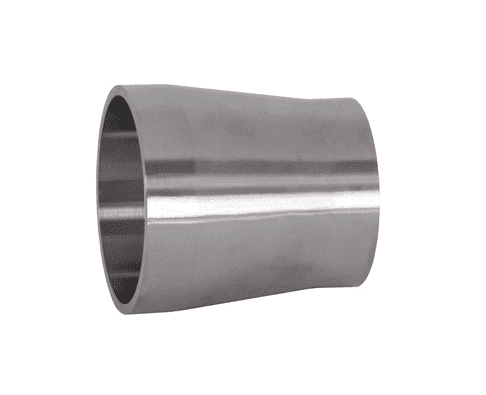

B19WX-R400 Dixon 316L Stainless Steel Sanitary Tube OD Weld x Schedule 10S Weld Pipe Size Adapter - 4" Pipe Size

B19WX-R400 Dixon Valve 316L Stainless Steel Sanitary Tube OD Weld x Schedule 10S Weld Pipe Size Adapter - 4" Pipe Size

Save $66.77 Save $66.77
$166.93
$166.93 - $166.93
$166.93
$100.16
$100.16 - $100.16
$100.16

Dixon Sanitary Fittings Sanitary Pipe Size Adapter - Tube OD Weld x Schedule 10S Weld Adapter - 316L Stainless Steel

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Specifications for Variant SKU: B19WX-R400 Dixon
Shape (Orientation): Straight
Ends Configuration: 4in Weld End, 4in Weld End, Some Ends Match
Material(s): 316L Stainless Steel
Features:
  • 3A sanitary finish ID and OD
Notes:
  • Please note in sizes 1/2" through 12" pipe is known by its nominal inside diameter, which differs from its actual inside diameter. To distinguish pipe sizes from actual measured diameters as used for tube, the terms iron pipe size (IPS) or nominal pipe size (NPS) are usually used. For all pipe sizes, the outside diameter (OD) remains constant; the variations in wall thickness affect the inside diameter (ID).
Part Number Pipe Size Dimensions
Tube Wall
Thickness		 Pipe Wall
Thickness		 Weight (Lbs.)
A B C D E
B19WX-R50 1/2" - - - - - - - -
B19WX-R75 3/4" - - - - - - - -
B19WX-R100 1" 2.000" 1.000" 1.320" 0.070" 0.110" 0.065" 0.109" 0.1800
B19WX-R150 1-1/2" 2.500" 1.500" 1.900" 0.070" 0.110" 0.065" 0.109" 0.3350
B19WX-R200 2" 2.500" 2.000" 2.380" 0.070" 0.110" 0.065" 0.109" 0.4200
B19WX-R250 2-1/2" 2.500" 2.500" 2.880" 0.070" 0.120" 0.065" 0.120" 0.6200
B19WX-R300 3" 2.500" 3.000" 3.500" 0.070" 0.120" 0.065" 0.120" 0.6800
B19WX-R400 4" 3.000" 4.000" 4.500" 0.080" 0.120" 0.084" 0.120" 1.2000
B19WX-R600 6" 3.000" 6.000" 6.620" 0.110" 0.130" - - 2.0000
