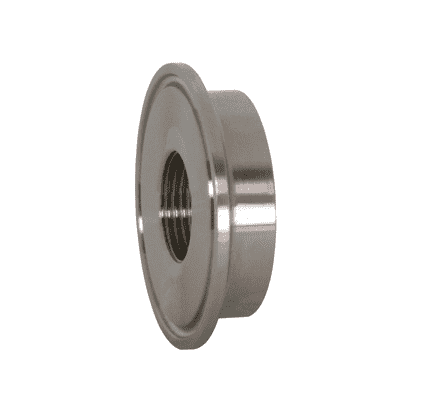

B23BMP-R400 Dixon Valve 316L Stainless Steel Sanitary Thermometer Cap - 4" Tube OD - 3/4" NPT Tap Size

B23BMP-R400 Dixon Valve 316L Stainless Steel Sanitary Thermometer Cap - 4" Tube OD - 3/4" NPT Tap Size

$55.32 - $55.32
$55.32
$57.97
$57.97 - $57.97
$57.97

Dixon Sanitary Fittings Sanitary Clamp Fitting Cap - Thermometer Cap

Specifications for Variant SKU: B23BMP-R400 Dixon
Ends Configuration: 4in Sanitary Clamp End, 3/4in Female NPT
Material(s): 316L Stainless Steel
Material:
  • 316L Stainless Steel
Part Number Tube OD Tap Size Dimensions

Weight(Lbs.)
A B C D
B23BMP-R7518 3/4" 1/8" NPT - - - 1/8" 1.0000
B23BMP-R100 1" 1/2" NPT 1.99" 1.50" 0.63" 1/2" 0.2900
B23BMP-R10025 1" 1/4" NPT - - - 1/4" -
B23BMP-R150 1-1/2" 3/4" NPT 1.99" 1.50" 0.63" 3/4" 0.2400
B23BMP-R15025 1-1/2" 1/4" NPT - - - 1/4" 0.2500
B23BMP-R15050 1-1/2" 1/2" NPT - - - 1/2" -
B23BMP-R150100 1-1/2" 1" NPT - - - 1" -
B23BMP-R150125 1-1/2" 1/8" NPT - - - 1/8" -
B23BMP-R200 2" 3/4" NPT 2.52" 2.00" 0.63" 3/4" 0.5115
B23BMP-R200BLK
(Blank)		 2" - - - - - 0.5115
B23BMP-R20025 2" 1/4" NPT - - - 1/4" 0.8500
B23BMP-R20050 2" 1/2" NPT - - - 1/2" 0.5115
B23BMP-R200100 2" 1" NPT - - - 1" -
B23BMP-R200150 2" 1-1/2" NPT - - - 1-1/2" -
B23BMP-R250 1-1/2" 3/4" NPT 3.05" 2.50" 0.63" 3/4" 0.8400
B23BMP-R300 3" 3/4" NPT 3.58" 3.00" 0.63" 3/4" 1.2550
B23BMP-R30050 3" 1/2" NPT - - - 1/2" 1.2600
B23BMP-R400 4" 3/4" NPT 4.68" 4.00" 0.63" 3/4" 2.3500
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
