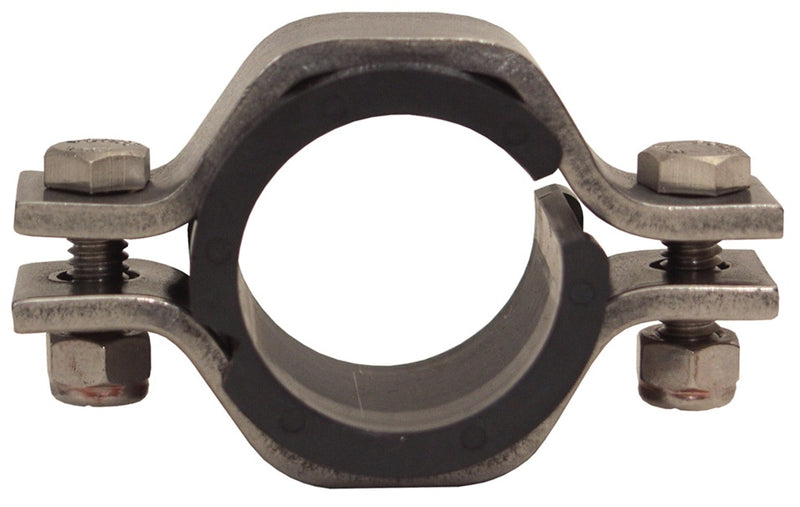

B24HS-G100 Dixon Valve 304 Stainless Steel Sanitary Hex Tube Hanger with High Temperature Polysulfone Sleeve - 1" Tube OD

B24HS-G100 Dixon Valve 304 Stainless Steel Sanitary Hex Tube Hanger with High Temperature Polysulfone Sleeve - 1" Tube OD

Save $2.82 Save $2.82
$13.53
$13.53 - $13.53
$13.53
$10.71
$10.71 - $10.71
$10.71

Dixon Sanitary Fittings Sanitary Tube Hanger - Hex Tube Hanger with High Temperature Polysulfone Sleeve - 304 Stainless Steel

Maximum temperature: 325°F (163°C)
Specifications for Variant SKU: B24HS-G100 Dixon
Installation:
  • Straight sections need support every 10 ft.
  • Each side of every valve (as close as possible to the connection) needs support.
  • Support each change of directions.
Part Number Tube OD Dimensions
Weight (Lbs.)
A B
B24HS-G50 1/2" 2.375" 1.062" 0.2300
B24HS-G75 3/4" 2.625" 1.188" 0.2500
B24HS-G100 1" 2.688" 1.563" 0.2750
B24HS-G150 1-1/2" 3.625" 2.125" 0.5500
B24HS-G200 2" 4.625" 2.625" 0.6800
B24HS-G250 2-1/2" 4.813" 3.125" 0.7500
B24HS-G300 3" 5.375" 3.625" 0.9100
B24HS-G400 4" 6.625" 4.625" 1.1150
B24HS-G600 6" 9.000" 6.625" -
