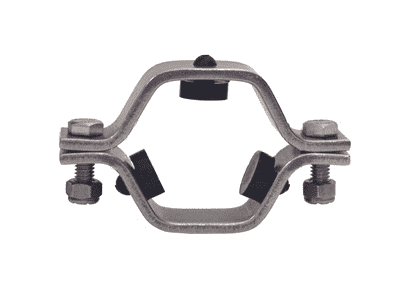

B24RG-G500 Dixon 304 Stainless Steel Sanitary Hex Tube Hanger with Nitrile Grommets - 5" Tube OD

B24RG-G500 Dixon Valve 304 Stainless Steel Sanitary Hex Tube Hanger with Nitrile Grommets - 5" Tube OD

Save $1.17 Save $1.17
$23.61
$23.61 - $23.61
$23.61
$22.44
$22.44 - $22.44
$22.44

Dixon Sanitary Fittings Sanitary Tube Hanger - Hex Tube Hanger with Nitrile Grommets - 304 Stainless Steel

Operating temperatures up to 230 deg. F
Specifications for Variant SKU: B24RG-G500 Dixon
Features:
  • Hex style hangers can be equipped with the following coupler options: 3/8 NPT or all thread: 3/8-16 or 1/2-13.
Installation:
  • Straight sections need support every 10 ft.
  • Each side of every valve (as close as possible to the connection) needs support.
  • Support each change of directions.
Part Number Tube OD Dimensions

Weight (Lbs.)
A B
B24RG-G50 1/2" - - -
B24RG-G75 1/2" - 3/4" 3.425" 1.450" 0.3800
B24RG-G100 1" 3.425" 1.450" 0.3700
B24RG-G150 1-1/2" 4.000" 2.125" 0.4500
B24RG-G200 2" 4.500" 2.500" 0.6500
B24RG-G250 2-1/2" 4.950" 3.125" 0.5900
B24RG-G300 3" 5.500" 3.750" 0.6600
B24RG-G400 4" 6.950" 4.750" 0.8500
B24RG-G500 5" 8.000" 5.625" 1.3000
B24RG-G600 6" 9.250" 6.625" 2.0500
B24RG-G800 8" 11.500" 8.625" 2.6000
B24RG-G1000 10" - - 2.8000
B24RG-G1200 12" - - 3.2000
