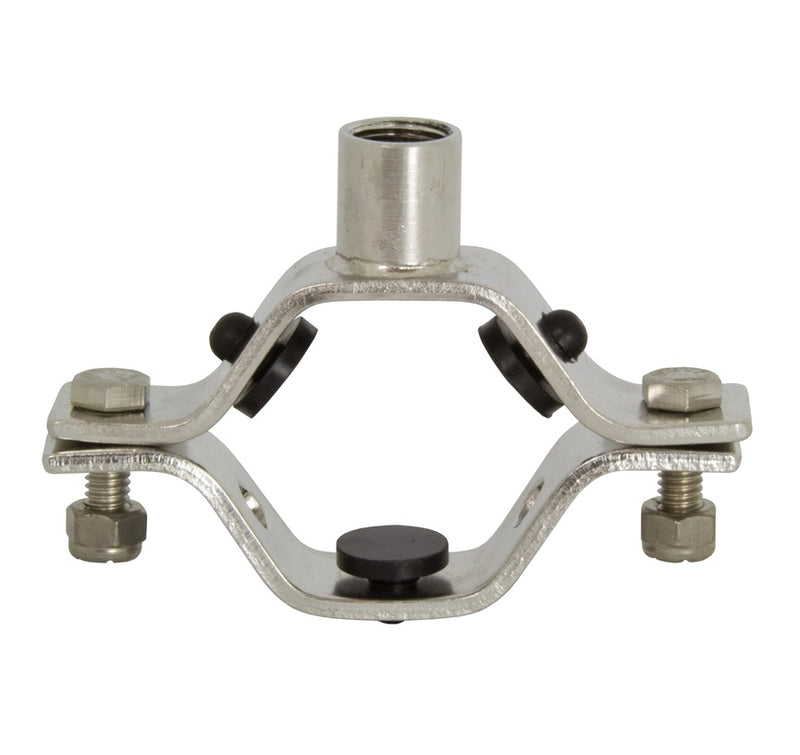

B24RGC-G200 Dixon Valve 304 Stainless Steel Hex Hanger with Nitrile Grommets and Coupler - 2" Tube OD

B24RGC-G200 Dixon Valve 304 Stainless Steel Hex Hanger with Nitrile Grommets and Coupler - 2" Tube OD

Save $2.16 Save $2.16
$26.36
$26.36 - $26.36
$26.36
$24.20
$24.20 - $24.20
$24.20

Dixon Sanitary Fittings Sanitary Hex Hanger with Nitrile Grommets and Coupler - 304 Stainless Steel

Operating temperatures up to 230°F (110°C)
Specifications for Variant SKU: B24RGC-G200 Dixon
Features:
  • Coupler has 3/8" NPT.
Installation:
  • Straight sections need support every 10 ft.
  • Each side of every valve (as close as possible to the connection) needs support.
  • Support each change of directions.
Part Number Tube OD Weight (Lbs.)
B24RGC-G75 1/2" - 3/4" 0.4300
B24RGC-G100 1" 0.4300
B24RGC-G150 1-1/2" 0.4950
B24RGC-G200 2" 0.6050
B24RGC-G250 2-1/2" 0.6550
B24RGC-G300 3" 0.7500
B24RGC-G400 4" 3.0000
B24RGC-G600 6" 1.2150
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
