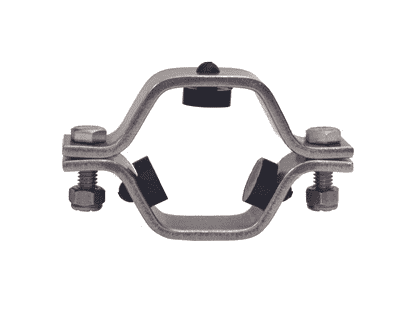

B24RV-G250 Dixon 304 Stainless Steel Sanitary Hex Pipe Size Hanger with Rubber Grommets - 2-1/2" Pipe Size

B24RV-G250 Dixon Valve 304 Stainless Steel Sanitary Hex Pipe Size Hanger with Rubber Grommets - 2-1/2" Pipe Size

Save $1.52 Save $1.52
$17.37
$17.37 - $17.37
$17.37
$15.85
$15.85 - $15.85
$15.85

Dixon Sanitary Fittings Sanitary Pipe Size Hanger - Hex Pipe Size Hanger with Rubber Grommets - 304 Stainless Steel
Specifications for Variant SKU: B24RV-G250 Dixon
Notes:
  • Please note in sizes 1/2" through 12" pipe is known by its nominal inside diameter, which differs from its actual inside diameter. To distinguish pipe sizes from actual measured diameters as used for tube, the terms iron pipe size (IPS) or nominal pipe size (NPS) are usually used. For all pipe sizes, the outside diameter (OD) remains constant; the variations in wall thickness affect the inside diameter (ID).
Part Number Pipe Size Dimensions

Weight (Lbs.)
A B C
B24RV-G50 1/2" - - - 0.7500
B24RV-G75 3/4" - - - -
B24RV-G100 1" 3.70" 2.20" 1.00" 0.5500
B24RV-G150 1-1/2" 4.40" 2.80" 1.00" 0.6300
B24RV-G200 2" 5.00" 3.30" 1.00" 0.7000
B24RV-G250 2-1/2" 5.60" 3.70" 1.00" 0.8000
B24RV-G300 3" 6.10" 4.30" 1.00" 0.8900
B24RV-G400 4" 7.60" 5.00" 1.00" 1.0900
B24RV-G600 6" 9.80" 7.20" 1.52" 2.2400
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
