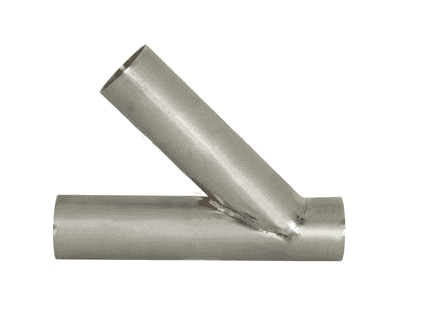

B28WA-R300U Dixon 316L Stainless Steel Sanitary Unpolished Weld Lateral - 3" Tube OD

B28WA-R300U Dixon Valve 316L Stainless Steel Sanitary Unpolished Weld Lateral - 3" Tube OD

Save $124.55 Save $124.55
$311.38
$311.38 - $311.38
$311.38
$186.83
$186.83 - $186.83
$186.83

Dixon Sanitary Fittings Sanitary Unpolished Weld Lateral - 316L Stainless Steel
Specifications for Variant SKU: B28WA-R300U Dixon
Shape (Orientation): Y
Ends Configuration: 3in Weld End, 3in Weld End, Some Ends Match
Material(s): 316L Stainless Steel
Special Properties: Unpolished
Part Number Tube OD Dimensions
Nominal Wall Weight (Lbs.)
A B C
B28WA-R100U 1" 6.000" 1.000" 5.000" 0.065" 0.5350
B28WA-R200U 2" 8.750" 1.625" 7.125" 0.065" 1.6350
B28WA-R300U 3" 10.750" 1.875" 8.875" 0.065" 3.0400
B28WA-R400U 4" 12.812" 2.015" 10.750" 0.083" 6.3000
B28WA-R600U 6" - - - - 15.0500
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
