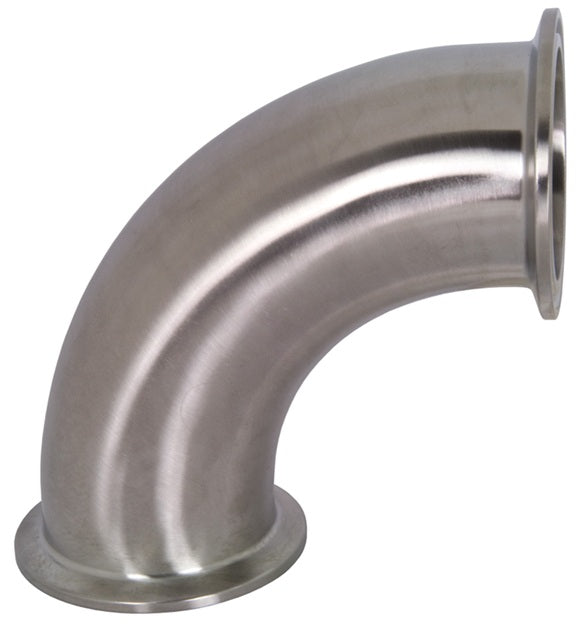

B2CMP-R800 Dixon Valve 316L Stainless Steel Sanitary 90 deg. Clamp Elbow - 8" Tube OD

B2CMP-R800 Dixon Valve 316L Stainless Steel Sanitary 90 deg. Clamp Elbow - 8" Tube OD

Save $39.09 Save $39.09
$607.08
$607.08 - $607.08
$607.08
$567.99
$567.99 - $567.99
$567.99

Dixon Sanitary Fittings Sanitary Clamp Elbow - 90° Clamp Elbow - 316L Stainless Steel

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Specifications for Variant SKU: B2CMP-R800 Dixon
Shape (Orientation): 90 Degree
Ends Configuration: 8in Sanitary Clamp End, 8in Sanitary Clamp End, Some Ends Match
Material(s): 316L Stainless Steel
Part Number Tube OD Dimensions
Weight (Lbs.)
A B ID OD R
B2CMP-R50 1/2" 1.63" 1.63" 0.37" 0.50" 1.13" 0.1200
B2CMP-R75 3/4" 1.63" 1.63" 0.60" 0.75" 1.13" 0.1500
B2CMP-R100 1" 2.00" 2.00" 0.87" 1.00" 1.50" 0.4200
B2CMP-R150 1-1/2" 2.75" 2.75" 1.37" 1.50" 2.25" 0.4700
B2CMP-R200 2" 3.50" 3.50" 1.87" 2.00" 3.00" 0.7500
B2CMP-R250 2-1/2" 4.25" 4.25" 2.37" 2.50" 3.75" 1.1600
B2CMP-R300 3" 5.00" 5.00" 2.87" 3.00" 4.50" 1.5800
B2CMP-R400 4" 6.63" 6.63" 3.83" 4.00" 6.00" 3.2700
B2CMP-R600 6" 9.88" 9.88" 5.78" 6.00" 9.00" 10.0000
B2CMP-R800 8" - - - - - 16.2400
B2CMP-R1000 10" - - - - - 25.0000
B2CMP-R1200 12" - - - - - 35.9500
