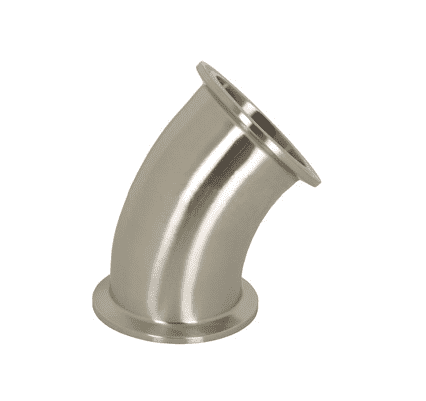

B2KMP-G100 Dixon 304 Stainless Steel Sanitary 45 deg. Clamp Elbow - 1" Tube OD

B2KMP-G100 Dixon Valve 304 Stainless Steel Sanitary 45 deg. Clamp Elbow - 1" Tube OD

Save $0.63 Save $0.63
$18.42
$18.42 - $18.42
$18.42
$17.79
$17.79 - $17.79
$17.79

Dixon Sanitary Fittings Sanitary Clamp Elbow - 45 deg. Clamp Elbow - 304 Stainless Steel

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Specifications for Variant SKU: B2KMP-G100 Dixon
Shape (Orientation): 45 Degree
Ends Configuration: 1in Sanitary Clamp End, 1in Sanitary Clamp End, Some Ends Match
Material(s): 304 Stainless Steel
Part Number Tube OD Dimensions
 Weight (Lbs.)
A B OD ID R
B2KMP-G100 1" 1.12" 1.12" 1.00" 0.87" 1.50" 0.3200
B2KMP-G150 1-1/2" 1.43" 1.43" 1.50" 1.37" 2.25" 0.3255
B2KMP-G200 2" 1.74" 1.74" 2.00" 1.87" 3.00" 0.5100
B2KMP-G250 2-1/2" 2.05" 2.05" 2.50" 2.37" 3.75" 0.7275
B2KMP-G300 3" 2.36" 2.36" 3.00" 2.87" 4.50" 1.0100
B2KMP-G400 4" 3.11" 3.11" 4.00" 3.83" 6.00" 2.0100
B2KMP-G600 6" 4.60" 4.60" 6.00" 5.78" 9.00" 5.6750
B2KMP-G800 8" - - - - - 9.4150
B2KMP-G1000 10" - - - - - 11.0000
