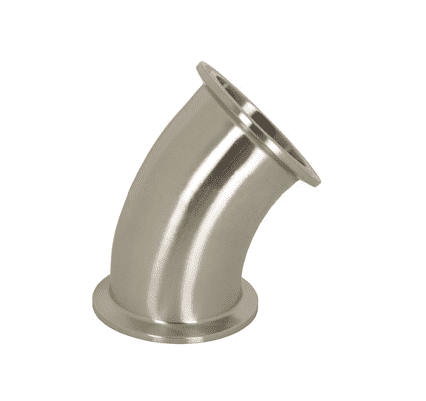

B2KMP-R100 Dixon 316L Stainless Steel Sanitary 45 deg. Clamp Elbow - 1" Tube OD

B2KMP-R100 Dixon Valve 316L Stainless Steel Sanitary 45 deg. Clamp Elbow - 1" Tube OD

Save $0.67 Save $0.67
$19.79
$19.79 - $19.79
$19.79
$19.12
$19.12 - $19.12
$19.12

Dixon Sanitary Fittings Sanitary Clamp Elbow - 45 deg. Clamp Elbow - 304 Stainless Steel

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Specifications for Variant SKU: B2KMP-R100 Dixon
Shape (Orientation): 45 Degree
Ends Configuration: 1in Sanitary Clamp End, 1in Sanitary Clamp End, Some Ends Match
Material(s): 316L Stainless Steel
Part Number Tube OD Dimensions
 Weight (Lbs.)
A B OD ID R
B2KMP-R50 1/2" 0.97" 0.97" 0.50" 0.37" 1.13" 0.1050
B2KMP-R75 3/4" 0.97" 0.97" 0.75" 0.62" 1.13" 0.0950
B2KMP-R100 1" 1.12" 1.12" 1.00" 0.87" 1.50" 0.3200
B2KMP-R150 1-1/2" 1.43" 1.43" 1.50" 1.37" 2.25" 0.3375
B2KMP-R200 2" 1.74" 1.74" 2.00" 1.87" 3.00" 0.5100
B2KMP-R250 2-1/2" 2.05" 2.05" 2.50" 2.37" 3.75" 0.7055
B2KMP-R300 3" 2.36" 2.36" 3.00" 2.87" 4.50" 1.3600
B2KMP-R400 4" 3.11" 3.11" 4.00" 3.83" 6.00" 2.0700
B2KMP-R600 6" 4.60" 4.60" 6.00" 5.78" 9.00" 5.7000
B2KMP-R800 8" - - - - - 9.3700
