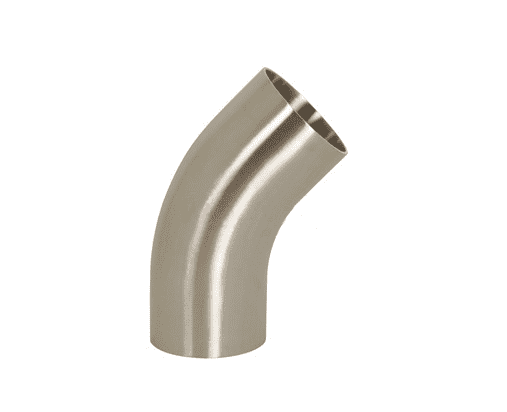

B2KS-R400P Dixon 316L Stainless Steel Sanitary Polished 45 deg. Weld Elbow with Tangent - 4" Tube OD

B2KS-R400P Dixon Valve 316L Stainless Steel Sanitary Polished 45 deg. Weld Elbow with Tangent - 4" Tube OD

Save $7.89 Save $7.89
$61.12
$61.12 - $61.12
$61.12
$53.23
$53.23 - $53.23
$53.23

Dixon Sanitary Fittings Sanitary Polished Weld Elbow - Polished 45° Weld Elbow with Tangents - 316L Stainless Steel

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).

3A sanitary finish ID and OD.
Specifications for Variant SKU: B2KS-R400P Dixon
Shape (Orientation): 45 Degree
Ends Configuration: 4in Weld End, 4in Weld End, Some Ends Match
Material(s): 316L Stainless Steel
Special Properties: Polished
Features:
  • Finish: Polished
Part Number Tube OD Dimensions

Wall Thickness Weight (Lbs.)
A R OD ID
B2KS-R50P 1/2" 2.25" 1.13" 0.50" 0.37" 0.065" 0.1200
B2KS-R75P 3/4" 2.25" 1.13" 0.75" 0.62" 0.065" 0.2100
B2KS-R100P 1" 1.19" 1.50" 1.00" 0.87" 0.065" 0.1200
B2KS-R150P 1-1/2" 1.63" 2.25" 1.50" 1.37" 0.065" 0.2650
B2KS-R200P 2" 2.31" 3.00" 2.00" 1.87" 0.065" 0.4600
B2KS-R250P 2-1/2" 3.00" 3.75" 2.50" 2.37" 0.065" 0.7800
B2KS-R300P 3" 3.69" 4.50" 3.00" 2.87" 0.065" 1.1900
B2KS-R400P 4" 4.81" 6.00" 4.00" 3.83" 0.083" 2.6300
