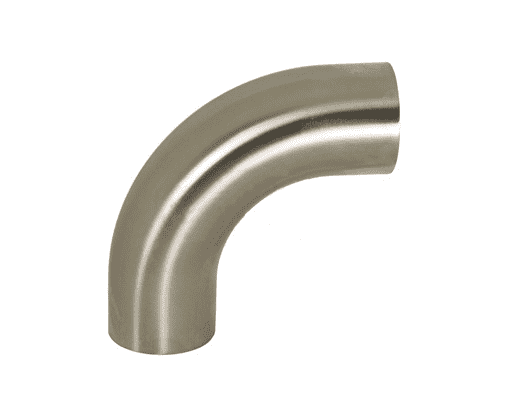

B2S-G300P Dixon 304 Stainless Steel Sanitary Polished 90 deg. Weld Elbow with Tangent - 3" Tube OD

B2S-G300P Dixon Valve 304 Stainless Steel Sanitary Polished 90 deg. Weld Elbow with Tangent - 3" Tube OD

Save $12.82 Save $12.82
$37.99
$37.99 - $37.99
$37.99
$25.17
$25.17 - $25.17
$25.17

Dixon Sanitary Fittings Sanitary Polished Weld Elbows - Polished 90° Weld Elbows with Tangents - 304 Stainless Steel

3A sanitary finish ID and OD.

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Specifications for Variant SKU: B2S-G300P Dixon
Shape (Orientation): 90 Degree
Ends Configuration: 3in Weld End, 3in Weld End, Some Ends Match
Material(s): 304 Stainless Steel
Special Properties: Polished
Features:
  • Finish: Polished
Part Number Tube OD Dimensions
Nominal Wall Weight (Lbs.)
A B R OD ID
B2S-G100P 1" 2.06" 2.06" 1.50" 1.00" 0.87" 0.065" 0.1700
B2S-G150P 1-1/2" 2.94" 2.94" 2.25" 1.50" 1.37" 0.065" 0.3700
B2S-G200P 2" 4.06" 4.06" 3.00" 2.00" 1.87" 0.065" 0.7000
B2S-G250P 2-1/2" 5.19" 5.19" 3.75" 2.50" 2.37" 0.065" 1.2200
B2S-G300P 3" 6.31" 6.31" 4.50" 3.00" 2.87" 0.065" 1.5400
B2S-G400P 4" 8.31" 8.31" 6.00" 4.00" 3.83" 0.083" 3.8100
B2S-G600P 6" - - - - - - 13.0000
