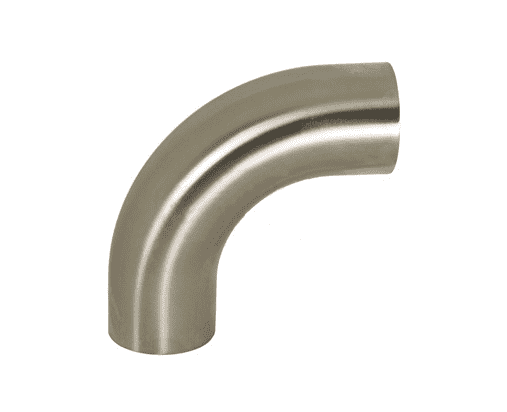

B2S-R250P Dixon 316L Stainless Steel Sanitary Polished 90 deg. Weld Elbow with Tangent - 2-1/2" Tube OD

B2S-R250P Dixon Valve 316L Stainless Steel Sanitary Polished 90 deg. Weld Elbow with Tangent - 2-1/2" Tube OD

Save $16.57 Save $16.57
$41.42
$41.42 - $41.42
$41.42
$24.85
$24.85 - $24.85
$24.85

Dixon Sanitary Fittings Sanitary Polished Weld Elbow - Polished 90 deg. Weld Elbow with Tangent - 316L Stainless Steel

3A sanitary finish ID and OD.

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Specifications for Variant SKU: B2S-R250P Dixon
Shape (Orientation): 90 Degree
Ends Configuration: 2-1/2in Weld End, 2-1/2in Weld End, Some Ends Match
Material(s): 316L Stainless Steel
Special Properties: Polished
Features:
  • Finish: Polished
Part Number Tube OD Dimensions
Nominal Wall Weight (Lbs.)
A B R OD ID
B2S-R50P 1/2" 3.00" 3.00" 1.25" 0.50" 0.37" 0.065" 0.1500
B2S-R75P 3/4" 3.00" 3.00" 1.25" 0.75" 0.62" 0.065" 0.2100
B2S-R100P 1" 2.06" 2.06" 1.50" 1.00" 0.87" 0.065" 0.1820
B2S-R150P 1-1/2" 2.94" 2.94" 2.25" 1.50" 1.37" 0.065" 0.4000
B2S-R200P 2" 4.06" 4.06" 3.00" 2.00" 1.87" 0.065" 0.7200
B2S-R250P 2-1/2" 5.19" 5.19" 3.75" 2.50" 2.37" 0.065" 1.2450
B2S-R300P 3" 6.31" 6.31" 4.50" 3.00" 2.87" 0.065" 1.7300
B2S-R400P 4" 8.31" 8.31" 6.00" 4.00" 3.83" 0.083" 3.6700
B2S-R600P 6" - - - - - - 12.0000
