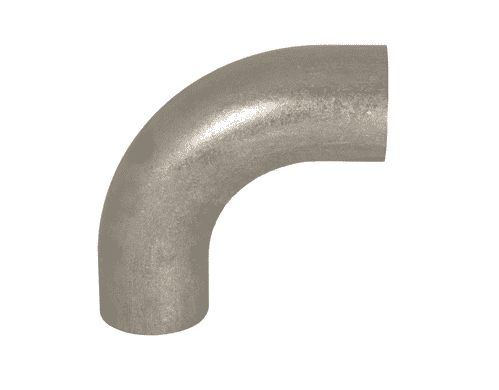

B2S-R250U Dixon 316L Stainless Steel Sanitary Unpolished 90 deg. Weld Elbow with Tangent - 2-1/2" Tube OD

B2S-R250U Dixon Valve 316L Stainless Steel Sanitary Unpolished 90 deg. Weld Elbow with Tangent - 2-1/2" Tube OD

Save $16.51 Save $16.51
$41.27
$41.27 - $41.27
$41.27
$24.76
$24.76 - $24.76
$24.76

Dixon Sanitary Fittings Sanitary Weld Unpolished Elbow - Unpolished 90 deg. Weld Elbow with Tangent - 316L Stainless Steel
Specifications for Variant SKU: B2S-R250U Dixon
Shape (Orientation): 90 Degree
Ends Configuration: 2-1/2in Weld End, 2-1/2in Weld End, Some Ends Match
Material(s): 316L Stainless Steel
Special Properties: Unpolished
Part Number Tube OD Dimensions
Nominal Wall Weight (Lbs.)
A B R OD ID
B2S-R50U 1/2" 3.00" 3.00" 1.25" 0.50" 0.37" 0.065" 1.0000
B2S-R75U 3/4" 3.00" 3.00" 1.25" 0.75" 0.62" 0.065" 0.2400
B2S-R100U 1" 2.06" 2.06" 1.50" 1.00" 0.87" 0.065" 0.1800
B2S-R150U 1-1/2" 2.94" 2.94" 2.25" 1.50" 1.37" 0.065" 0.3800
B2S-R200U 2" 4.06" 4.06" 3.00" 2.00" 1.87" 0.065" 0.7800
B2S-R250U 2-1/2" 5.19" 5.19" 3.75" 2.50" 2.37" 0.065" 1.2600
B2S-R300U 3" 6.31" 6.31" 4.50" 3.00" 2.87" 0.065" 1.7100
B2S-R400U 4" 8.31" 8.31" 6.00" 4.00" 3.83" 0.083" 3.7800
