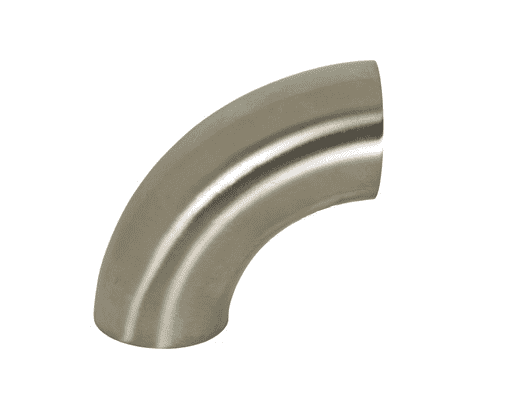

B2WCL-R250P Dixon 316L Stainless Steel Sanitary Polished 90 deg. Weld Elbow - 2-1/2" Tube OD

B2WCL-R250P Dixon Valve 316L Stainless Steel Sanitary Polished 90 deg. Weld Elbow - 2-1/2" Tube OD

Save $1.20 Save $1.20
$21.99
$21.99 - $21.99
$21.99
$20.79
$20.79 - $20.79
$20.79

Dixon Sanitary Fittings Sanitary Polished Weld Elbow - Polished 90° Weld Elbow - 316L Stainless Steel

3A sanitary finish ID and OD.

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Specifications for Variant SKU: B2WCL-R250P Dixon
Shape (Orientation): 90 Degree
Ends Configuration: 2-1/2in Weld End, 2-1/2in Weld End, Some Ends Match
Material(s): 316L Stainless Steel
Special Properties: Polished
Features:
  • Finish: Polished
Part Number Tube OD Dimensions

Nominal Wall Weight (Lbs.)
A B OD ID
B2WCL-R50P 1/2" 1.13" 1.13" 0.50" 0.37" 0.065" 0.0500
B2WCL-R75P 3/4" 1.13" 1.13" 0.75" 0.62" 0.065" 0.0800
B2WCL-R100P 1" 1.50" 1.50" 1.00" 0.87" 0.065" 0.1305
B2WCL-R150P 1-1/2" 2.25" 2.25" 1.50" 1.37" 0.065" 0.3000
B2WCL-R200P 2" 3.00" 3.00" 2.00" 1.87" 0.065" 0.5500
B2WCL-R250P 2-1/2" 3.75" 3.75" 2.50" 2.37" 0.065" 0.8600
B2WCL-R300P 3" 4.50" 4.50" 3.00" 2.87" 0.065" 1.2400
B2WCL-R400P 4" 6.00" 6.00" 4.00" 3.83" 0.083" 2.7400
B2WCL-R600P 6" 9.00" 9.00" 6.00" 5.78" 0.109" 8.5100
B2WCL-R800P 8" 12.00" 12.00" 8.00" 7.78" 0.109" 14.0000
B2WCL-R1000P 10" 15.00" 15.00" 10.00" 9.76" 0.109" 22.0500
B2WCL-R1200P 12" 18.00" 18.00" 12.00" 11.76" - 32.1500
