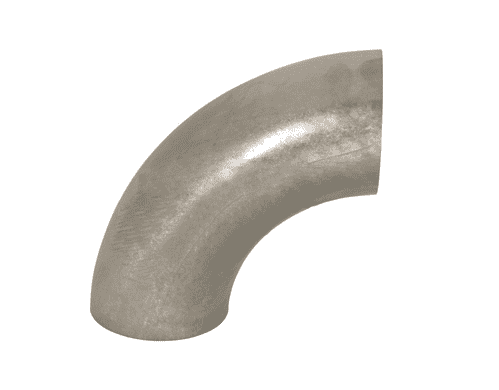

B2WCL-R75U Dixon 316L Stainless Steel Sanitary Unpolished 90 deg. Weld Elbow - 3/4" Tube OD

B2WCL-R75U Dixon Valve 316L Stainless Steel Sanitary Unpolished 90 deg. Weld Elbow - 3/4" Tube OD

Save $5.44 Save $5.44
$13.60
$13.60 - $13.60
$13.60
$8.16
$8.16 - $8.16
$8.16

Dixon Sanitary Fittings Sanitary Weld Unpolished Elbow - Unpolished 90° Weld Elbow - 316L Stainless Steel
Specifications for Variant SKU: B2WCL-R75U Dixon
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Weld End, 3/4in Weld End, Some Ends Match
Material(s): 316L Stainless Steel
Special Properties: Unpolished
Part Number Tube OD Dimensions

Nominal Wall Weight (Lbs.)
A B OD ID
B2WCL-R50U 1/2" 1.13" 1.13" 0.50" 0.37" 0.065 0.0500
B2WCL-R75U 3/4" 1.13" 1.13" 0.75" 0.62" 0.065 0.0800
B2WCL-R100U 1" 1.50" 1.50" 1.00" 0.87" 0.065 0.1400
B2WCL-R150U 1-1/2" 2.25" 2.25" 1.50" 1.37" 0.065 0.3300
B2WCL-R200U 2" 3.00" 3.00" 2.00" 1.87" 0.065 0.5700
B2WCL-R250U 2-1/2" 3.75" 3.75" 2.50" 2.37" 0.065 0.9200
B2WCL-R300U 3" 4.50" 4.50" 3.00" 2.87" 0.065 1.3300
B2WCL-R400U 4" 6.00" 6.00" 4.00" 3.83" 0.083 2.8300
B2WCL-R600U 6" 9.00" 9.00" 6.00" 5.78" 0.109 8.7500
B2WCL-R800U 8" 12.00" 12.00" 8.00" 7.78" 0.109 15.7500
B2WCL-R1000U 10" 15.00" 15.00" 10.00" 9.76" 0.109 11.0000
B2WCL-R1200U 12" 18.00" 18.00" 12.00" 11.76" 0.109 33.4000
