B2WK-G1200U Dixon Valve 304 Stainless Steel Sanitary Unpolished 45 deg. Weld Elbow - 12" Tube OD

B2WK-G1200U Dixon Valve 304 Stainless Steel Sanitary Unpolished 45 deg. Weld Elbow - 12" Tube OD

Save $577.78 Save $577.78
$1,444.45
$1,444.45 - $1,444.45
$1,444.45
$866.67
$866.67 - $866.67
$866.67

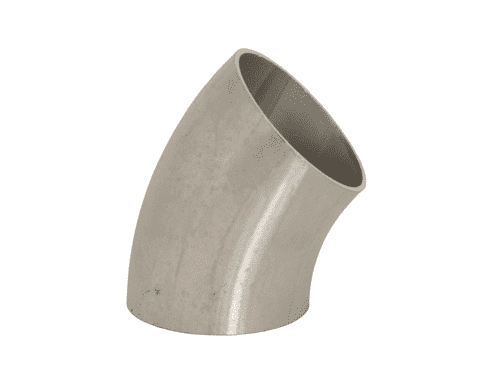

Dixon Sanitary Fittings Sanitary Weld Unpolished Elbow - Unpolished 45° Weld Elbow - 304 Stainless Steel
Specifications for Variant SKU: B2WK-G1200U Dixon
Shape (Orientation): 45 Degree
Material(s): 304 Stainless Steel
Special Properties: Unpolished
Part Number Tube OD Dimensions

Nominal Wall Weight (Lbs.)
A R OD ID
B2WK-G100U 1" 0.62" 1.50" 1.00" 0.87" 0.065" 0.0700
B2WK-G150U 1-1/2" 0.94" 2.25" 1.50" 1.37" 0.065" 1.1350
B2WK-G200U 2" 1.25" 3.00" 2.00" 1.87" 0.065" 0.2700
B2WK-G250U 2-1/2" 1.56" 3.75" 2.50" 2.37" 0.065" 0.3955
B2WK-G300U 3" 1.87" 4.50" 3.00" 2.87" 0.065" 0.5920
B2WK-G400U 4" 2.50" 6.00" 4.00" 3.83" 0.083" 1.2600
B2WK-G600U 6" 3.75" 9.00" 6.00" 5.78" 0.109" 4.2700
B2WK-G800U 8" 4.97" 12.00" 8.00" 7.78" 0.109" 7.8500
B2WK-G1000U 10" 6.25" 15.00" 10.00" 9.76" 0.109" 11.0000
B2WK-G1200U 12" 7.50" 18.00" 12.00" 11.76" 0.120" 14.0000
