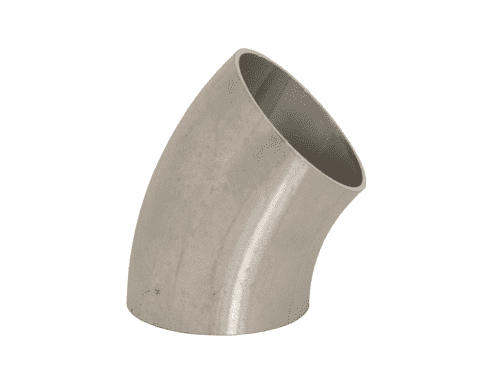

B2WK-R600U Dixon 316L Stainless Steel Sanitary Unpolished 45 deg. Weld Elbow - 6" Tube OD

B2WK-R600U Dixon Valve 316L Stainless Steel Sanitary Unpolished 45 deg. Weld Elbow - 6" Tube OD

Save $79.70 Save $79.70
$199.25
$199.25 - $199.25
$199.25
$119.55
$119.55 - $119.55
$119.55

Dixon Sanitary Fittings Sanitary Weld Unpolished Elbow - Unpolished 45° Weld Elbow - 316L Stainless Steel
Specifications for Variant SKU: B2WK-R600U Dixon
Shape (Orientation): 45 Degree
Ends Configuration: 6in Weld End, 6in Weld End, Some Ends Match
Material(s): 316L Stainless Steel
Special Properties: Unpolished
Part Number Tube OD Dimensions

Nominal Wall Weight (Lbs.)
A R OD ID
B2WK-R50U 1/2" 0.47" 1.13" 0.50" 0.37" 0.065" 0.0200
B2WK-R75U 3/4" 0.47" 1.13" 0.75" 0.62" 0.065" 0.0400
B2WK-R100U 1" 0.62" 1.50" 1.00" 0.87" 0.065" 0.0650
B2WK-R150U 1-1/2" 0.94" 2.25" 1.50" 1.37" 0.065" 0.1500
B2WK-R200U 2" 1.25" 3.00" 2.00" 1.87" 0.065" 0.2800
B2WK-R250U 2-1/2" 1.56" 3.75" 2.50" 2.37" 0.065" 0.3850
B2WK-R300U 3" 1.87" 4.50" 3.00" 2.87" 0.065" 0.5655
B2WK-R400U 4" 2.50" 6.00" 4.00" 3.83" 0.083" 1.3650
B2WK-R600U 6" 3.75" 9.00" 6.00" 5.78" 0.109" 4.7950
B2WK-R800U 8" 4.97" 12.00" 8.00" 7.78" 0.109" 3.6775
