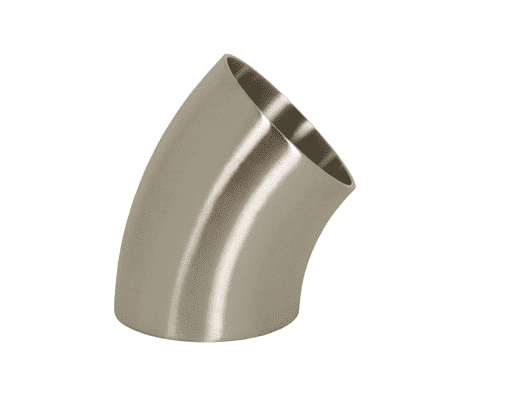

B2WK-R75P Dixon Valve 316L Stainless Steel Sanitary Polished 45 deg. Weld Elbow - 3/4" Tube OD

B2WK-R75P Dixon Valve 316L Stainless Steel Sanitary Polished 45 deg. Weld Elbow - 3/4" Tube OD

Save $6.93 Save $6.93
$17.32
$17.32 - $17.32
$17.32
$10.39
$10.39 - $10.39
$10.39

Dixon Sanitary Fittings Sanitary Weld Unpolished Elbow - Polished 45° Weld Elbow - 316L Stainless Steel

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).

3A sanitary finish ID and OD.
Specifications for Variant SKU: B2WK-R75P Dixon
Shape (Orientation): 45 Degree
Ends Configuration: 3/4in Weld End, 3/4in Weld End, Some Ends Match
Material(s): 316L Stainless Steel
Special Properties: Polished
Features:
  • Finish: Polished
Part Number Tube OD Dimensions

Nominal Wall Weight (Lbs.)
A R OD ID
B2WK-R50P 1/2" 0.47" 1.13" 0.50" 0.37" 0.065" 0.0250
B2WK-R75P 3/4" 0.47" 1.13" 0.75" 0.62" 0.065" 0.0475
B2WK-R100P 1" 0.62" 1.50" 1.00" 0.87" 0.065" 0.06650
B2WK-R150P 1-1/2" 0.94" 2.25" 1.50" 1.37" 0.065" 0.1500
B2WK-R200P 2" 1.25" 3.00" 2.00" 1.87" 0.065" 0.2620
B2WK-R250P 2-1/2" 1.56" 3.75" 2.50" 2.37" 0.065" 0.4250
B2WK-R300P 3" 1.87" 4.50" 3.00" 2.87" 0.065" 0.6100
B2WK-R400P 4" 2.50" 6.00" 4.00" 3.83" 0.083" 1.3655
B2WK-R600P 6" 3.75" 9.00" 6.00" 5.78" 0.109" 6.0000
B2WK-R800P 8" 4.97" 12.00" 8.00" 7.78" 0.109" 8.6500
B2WK-R1000P 10" 6.25" 15.00" 10.00" 9.76" 0.109" 10.5250
B2WK-R1200P 12" 7.50" 18.00" 12.00" 11.76" 0.120" 14.0000
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
