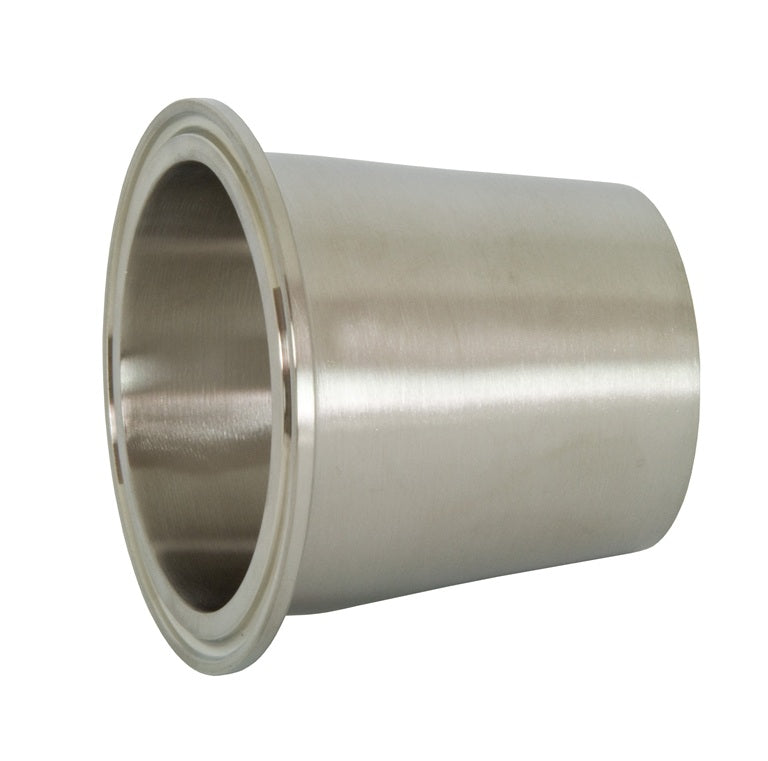

B31M-R10050 Dixon Valve Polished Concentric Clamp x Weld Reducer - 1" x 1/2" Tube OD - 316L Stainless Steel

B31M-R10050 Dixon Valve Polished Concentric Clamp x Weld Reducer - 1" x 1/2" Tube OD - 316L Stainless Steel

Save $51.82 Save $51.82
$129.55
$129.55 - $129.55
$129.55
$77.73
$77.73 - $77.73
$77.73

Dixon Sanitary Fittings Sanitary Clamp x Threaded Bevel Seat Concentric Reducer - 316 Stainless Steel

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Specifications for Variant SKU: B31M-R10050 Dixon
Shape (Orientation): Straight
Material(s): 316L Stainless Steel
Special Properties: Polished
Features:
  • 3A sanitary finish ID and OD
304 Stainless Steel
Part Number		 315L Stainless Steel
Part Number		 Tube OD Dimensions

A B C D E
- B31M-R7550 3/4" x 1/2" 1.50" 0.50" 0.75" 0.065" 0.065"
- B31M-R10050 1" x 1/2" 2.50" 0.50" 1.00" 0.065" 0.065"
- B31M-R10075 1" x 3/4" 1.50" 0.75" 1.00" 0.065" 0.065"
- B31M-R15050 1-1/2" x 1/2" 4.50" 0.50" 1.50" 0.065" 0.065"
- B31M-R15075 1-1/2" x 3/4" 3.50" 0.75" 1.50" 0.065" 0.065"
B31M-G150100 B31M-R150100 1-1/2" x 1" 2.50" 1.00" 1.50" 0.065" 0.065"
B31M-G200100 B31M-R200100 2" x 1" 4.50" 1.00" 2.00" 0.065" 0.065"
B31M-G200150 B31M-R200150 2" x 1-1/2" 2.50" 1.50" 2.00" 0.065" 0.065"
B31M-G250150 B31M-R250150 2-1/2" x 1-1/2" 4.50" 1.50" 2.50" 0.065" 0.065"
B31M-G250200 B31M-R250200 2-1/2" x 2" 2.50" 2.00" 2.50" 0.065" 0.065"
B31M-G300200 B31M-R300200 3" x 2" 4.50" 2.00" 3.00" 0.065" 0.065"
B31M-G300250 - 3" x 2-1/2" 2.50" 2.50" 3.00" 0.065" 0.065"
- B31M-R400200 4" x 2" 8.63" 2.00" 4.00" 0.083" 0.065"
B31M-G400300 - 4" x 3" 4.63" 3.00" 4.00" 0.083" 0.065"
B31M-G600400 - 6" x 4" - - - - -
