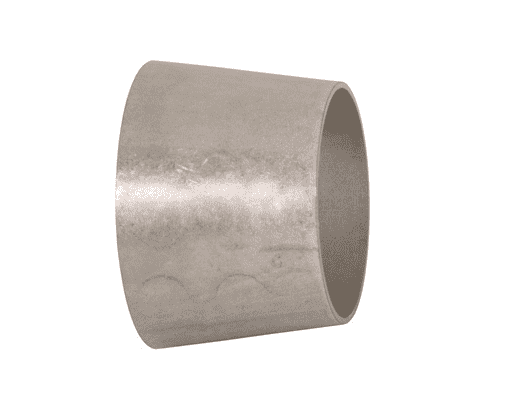

B31W-R10050U Dixon 316L Stainless Steel Sanitary Unpolished Concentric Weld Reducer - 1" x 1/2" Tube OD

B31W-R10050U Dixon Valve 316L Stainless Steel Sanitary Unpolished Concentric Weld Reducer - 1" x 1/2" Tube OD

Save $10.53 Save $10.53
$26.32
$26.32 - $26.32
$26.32
$15.79
$15.79 - $15.79
$15.79

Dixon Sanitary Fittings Sanitary Unpolished Concentric Weld Reducers - 316L Stainless Steel
Specifications for Variant SKU: B31W-R10050U Dixon
Shape (Orientation): Straight
Ends Configuration: 1in Weld End, 1/2in Weld End
Material(s): 316L Stainless Steel
Special Properties: Unpolished
Part Number Tube OD Dimensions

 Weight(Lbs.)
A B C D E
B31W-R7550U 3/4" x 1/2" 1.00" 0.50" 0.75" 0.07" 0.07" 0.0350
B31W-R10050U 1" x 1/2" 2.00" 0.50" 1.00" 0.07" 0.07" 0.0400
B31W-R10075U 1" x 3/4" 1.00" 0.75" 1.00" 0.07" 0.07" 0.0495
B31W-R15050U 1-1/2" x 1/2" 4.00" 0.50" 1.50" 0.07" 0.07" 0.2250
B31W-R15075U 1-1/2" x 3/4" 3.00" 0.75" 1.50" 0.07" 0.07" 0.2000
B31W-R150100U 1-1/2" x 1" 2.00" 1.00" 1.50" 0.07" 0.07" 0.1615
B31W-R20075U 2" x 3/4" 5.00" 0.75" 2.00" 0.07" 0.07" 0.4050
B31W-R200100U 2" x 1" 4.00" 1.00" 2.00" 0.07" 0.07" 0.3500
B31W-R200150U 2" x 1-1/2" 2.00" 1.50" 2.00" 0.07" 0.07" 0.2200
B31W-R250150U 2-1/2" x 1-1/2" 4.00" 1.50" 2.50" 0.07" 0.07" 0.4950
B31W-R250200U 2-1/2" x 2" 2.00" 2.00" 2.50" 0.07" 0.07" 0.2600
B31W-R300100U 3" x 1" 8.00" 1.00" 3.00" 0.07" 0.07" 0.9900
B31W-R300150U 3" x 1-1/2" 6.00" 1.50" 3.00" 0.07" 0.07" 1.1050
B31W-R300200U 3" x 2" 4.00" 2.00" 3.00" 0.07" 0.07" 0.6035
B31W-R300250U 3" x 2-1/2" 2.00" 2.50" 3.00" 0.07" 0.07" 0.3650
B31W-R400150U 4" x 1-1/2" 10.00" 1.50" 4.00" 0.08" 0.07" 3.0000
B31W-R400200U 4" x 2" 8.00" 2.00" 4.00" 0.08" 0.07" 3.0000
B31W-R400250U 4" x 2-1/2" 6.00" 2.50" 4.00" 0.08" 0.07" 1.2300
B31W-R400300U 4" x 3" 4.00" 3.00" 4.00" 0.08" 0.07" 0.9655
B31W-R600300U 6" x 3" 5.50" 3.00" 6.00" 0.11" 0.07" 2.3400
B31W-R600400U 6" x 4" 5.50" 4.00" 6.00" 0.11" 0.08" 2.5550
B31W-R800400U 8" x 4" 6.00" 4.00" 8.00" 0.11" 0.08" 3.8500
B31W-R800600U 8" x 6" 6.00" 6.00" 8.00" 0.11" 0.11" 4.1250
B31W-R12001000U 12" x 10" - - - - - 14.0000
