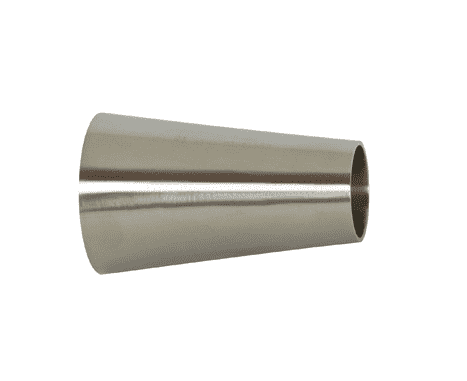

B31W-R600300P Dixon 316L Stainless Steel Sanitary Polished Concentric Weld Reducer - 6" x 3" Tube OD

B31W-R600300P Dixon Valve 316L Stainless Steel Sanitary Polished Concentric Weld Reducer - 6" x 3" Tube OD

Save $150.08 Save $150.08
$375.20
$375.20 - $375.20
$375.20
$225.12
$225.12 - $225.12
$225.12

Dixon Sanitary Fittings Sanitary Polished Concentric Weld Reducer - 316L Stainless Steel

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Specifications for Variant SKU: B31W-R600300P Dixon
Shape (Orientation): Straight
Ends Configuration: 6in Weld End, 3in Weld End
Material(s): 316L Stainless Steel
Special Properties: Polished
Note:
  • 3A sanitary finish ID and OD.
Part Number Tube OD Dimensions

 Weight(Lbs.)
A B C D E
B31W-R7550P 3/4" x 1/2" 1.00" 0.50" 0.75" 0.065" 0.065" 0.0350
B31W-R10050P 1" x 1/2" 2.00" 0.50" 1.00" 0.065" 0.065" 0.0710
B31W-R10075P 1" x 3/4" 1.00" 0.75" 1.00" 0.065" 0.065" 0.0500
B31W-R15050P 1-1/2" x 1/2" 4" 0.50" 1.50" 0.065" 0.065" 0.2550
B31W-R15075P 1-1/2" x 3/4" 3.00" 0.75" 1.50" 0.065" 0.065" 0.1800
B31W-R150100P 1-1/2" x 1" 2.00" 1.00" 1.50" 0.065" 0.065" 0.1450
B31W-R20050P 2" x 1/2" 6.00" 0.50" 2.00" 0.065" 0.065" 0.4000
B31W-R20075P 2" x 3/4" 5.00" 0.75" 2.00" 0.065" 0.065" 0.3800
B31W-R200100P 2" x 1" 4.00" 1.00" 2.00" 0.065" 0.065" 0.4200
B31W-R200150P 2" x 1-1/2" 2.00" 1.50" 2.00" 0.065" 0.065" 0.2000
B31W-R250150P 2-1/2" x 1-1/2" 4.00" 1.50" 2.50" 0.065" 0.065" 0.5300
B31W-R250200P 2-1/2" x 2" 2.00" 2.00" 2.50" 0.065" 0.065" 0.2300
B31W-R300100P 3" x 1" 8.00" 1.00" 3.00" 0.065" 0.065" 0.9750
B31W-R300150P 3" x 1-1/2" 6.00" 1.50" 3.00" 0.065" 0.065" 0.7880
B31W-R300200P 3" x 2" 4.00" 2.00" 3.00" 0.065" 0.065" 0.6100
B31W-R300250P 3" x 2-1/2" 2.00" 2.50" 3.00" 0.065" 0.065" 0.3400
B31W-R400100P 4" x 1" - - - - - 3.1050
B31W-R400150P 4" x 1-1/2" 10.00" 1.50" 4.00" 0.083" 0.065" 1.7900
B31W-R400200P 4" x 2" 8.00" 2.00" 4.00" 0.083" 0.065" 2.2300
B31W-R400250P 4" x 2-1/2" 6.00" 2.50" 4.00" 0.083" 0.065" 1.2850
B31W-R400300P 4" x 3" 4.00" 3.00" 4.00" 0.083" 0.065" 1.0700
B31W-R600200P 6" x 2" 5.50" 2.00" 6.00" 0.109" 0.065" 2.0800
B31W-R600300P 6" x 3" 5.50" 3.00" 6.00" 0.109" 0.065" 2.9350
B31W-R600400P 6" x 4" 5.50" 4.00" 6.00" 0.109" 0.083" 3.2800
B31W-R800400P 8" x 4" 6.00" 4.00" 8.00" 0.109" 0.083" 3.6350
B31W-R800600P 8" x 6" 6.00" 6.00" 8.00" 0.109" 0.109" 4.2730
