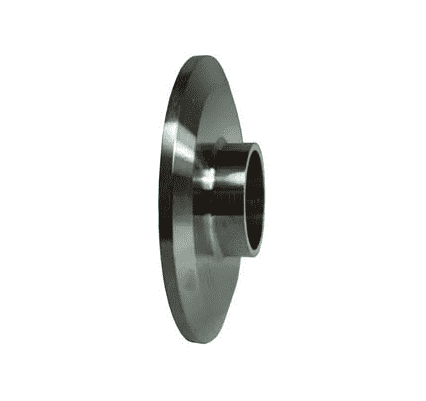

B31WMP-G300250 Dixon Valve 304 Stainless Steel Sanitary Reducing Ferrule - 3" x 2-1/2" Tube OD

B31WMP-G300250 Dixon Valve 304 Stainless Steel Sanitary Reducing Ferrule - 3" x 2-1/2" Tube OD

Save $0.93 Save $0.93
$22.20
$22.20 - $22.20
$22.20
$21.27
$21.27 - $21.27
$21.27

Dixon Sanitary Fittings Sanitary Clamp Ferrule - Reducing Ferrule - 304 Stainless Steel
Specifications for Variant SKU: B31WMP-G300250 Dixon
Shape (Orientation): No Orientation
Material(s): 304 Stainless Steel
Features:
  • 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Part Number Tube OD Dimensions

Weight (Lbs.)
A B C D E
B31WMP-G200100 2" x 1" 0.50" 1.00" 0.87" 2.52" 2.22" 0.2900
B31WMP-G200150 2" x 1-1/2" - - - - - 0.2150
B31WMP-G250150 2-1/2" x 1-1/2" 0.50" 1.50" 1.37" 3.05" 2.78" 3.0000
B31WMP-G250200 2-1/2" x 2" 0.50" 2.00" 1.87" 3.05" 2.78" 0.2950
B31WMP-G300200 3" x 2" 0.50" 2.00" 1.87" 3.58" 3.34" 3.0000
B31WMP-G300250 3" x 2-1/2" 0.50" 2.50" 2.37" 3.58" 3.28" 0.3850
B31WMP-G400200 4" x 2" - - - - - -
B31WMP-G400250 4" x 2-1/2" - - - - - 3.0000
B31WMP-G400300 4" x 3" 0.63" 3.00" 2.87" 4.68" 4.34" 3.0000
B31WMP-G600400 6" x 4" - - - - - -
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.

Shop Parts by Dixon Valve & Coupling
